ANT 6 Floors Dumbwaiter Controller Goods Dumbwaiter Control Panel LOP
| Place of Origin | NINGBO, CHINA |
|---|---|
| Brand Name | SUMT, ANT |
| Certification | CE |
| Model Number | 6X6station |
| Minimum Order Quantity | MOQ:4pcs |
| Price | Negotiable |
| Packaging Details | Box+carton, 15pcs/Carton, 30kg/carton, carton size: 52X51X28cm |
| Delivery Time | 3-20 working days depending on the quantity |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Dumbwaiter Calling Panel | Voltage | DC24V |
|---|---|---|---|
| Floor Number | Suitable To 6 Floors | Application | Particuarlly For Goods Lift /dumbwaiter |
| Display Mode | Decimal Code | Calling Number | 6pcs/each Set, 1 With Lock |
| High Light | ANT 6 Floors Dumbwaiter Controller,Goods Dumbwaiter Control Panel,Dumbwaiter Control Panel LOP |
||
Product Description

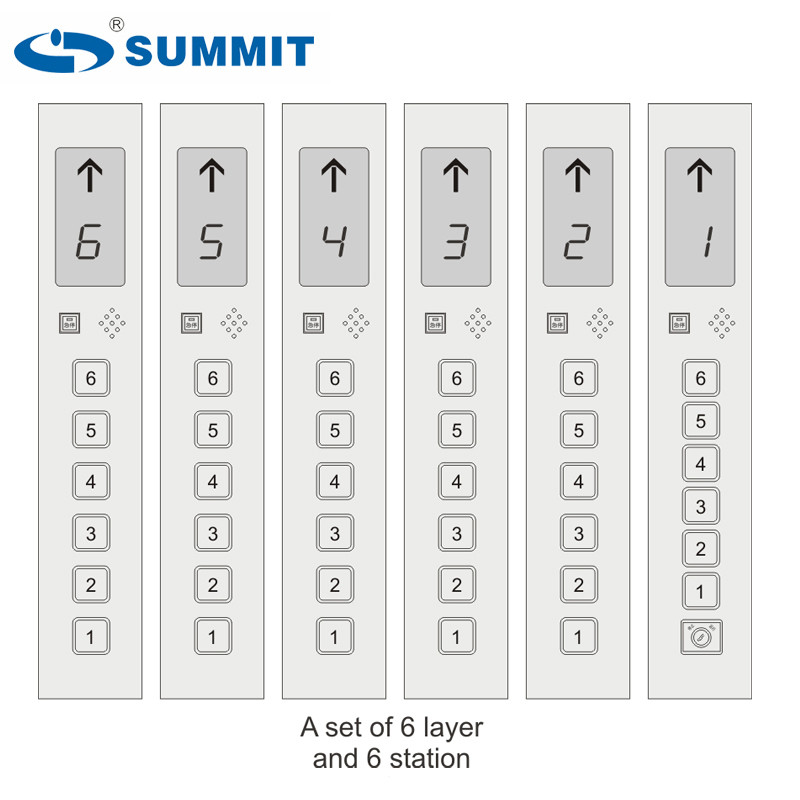

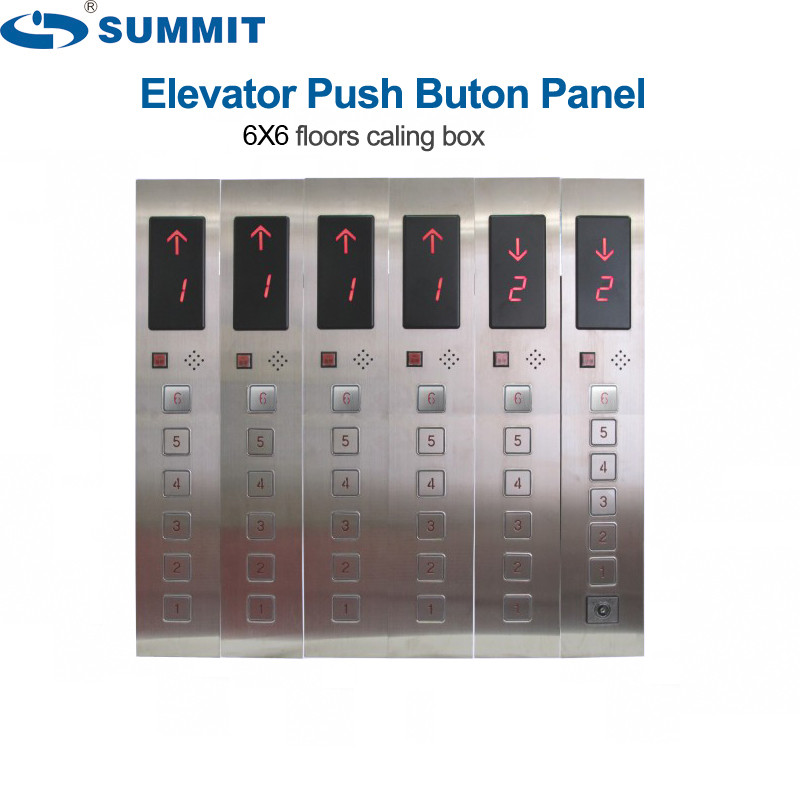

ANT 6 floors 6 six layer 6station dumbwaiter goods lift calling box landing operation panel LOP
Description:
The calling panel is designed particularly used for the goods lift or dumbwaiter, and it is available from 2 floor to six floors
Technical Paramters:
| Production name | Push button calling box |
| Working voltage | DC24V+/-5% (common cathode) |
| Display mode | Decimal code display |
| Rated power | <2W |
| Suitable for layer | 2-6 layer station |
| Panel material | 304 stainless steel(thickness 2mm) |
| Bottom box material | Galvanized iron sheet |
| Layer display | 1 position digital tube display |
| Direction display | 1PC of up and down arrows |
| Special display | Opening/closing tips |
| Voice prompt | Buzzer |
| Lay button | One button each floor |
| Scram button | 1 piece |
| Power lock | 1pice (2keys) |
The Dumbwatier calling box 2*2 station size:
