ANT BT-02-B Dumbwaiter Controller Goods Lift Car Operation Panel Box LED Display

  • ANT BT-02-B Dumbwaiter Controller Goods Lift Car Operation Panel Box LED Display
  • ANT BT-02-B Dumbwaiter Controller Goods Lift Car Operation Panel Box LED Display
  • ANT BT-02-B Dumbwaiter Controller Goods Lift Car Operation Panel Box LED Display
Place of Origin NINGBO, CHINA
Brand Name SUMT, ANT
Certification CE
Model Number BT-02-B
Minimum Order Quantity MOQ:1pcs
Price Negotiable
Packaging Details Box+carton, 50pcs/Carton, 8.0kg/carton, carton size: 52X24X72cm
Delivery Time 3-20 working days depending on the quantity
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 5000-1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name BT-02 LED Display Board Voltage DC24V
Mode Common Anode Power Ouput <2W
Size 132X65cm N.W. 0.12kg
High Light

ANT BT-02-B Dumbwaiter Controller

,

ANT BT-02-B Car Operation Panel Box

,

Car Operation Panel Box LED Display
Leave a Message
Product Description

ANT BT-02-B dumbwaiter goods lift car operation panel box LED display anode circuit board BT02 PCB

Description:
This dumbwaiter cabinet is particularly designed for the dumbwaiter or small kitchen lift and it is applicable to 2-5 floors and max up to 6 floors(it can be customized) , and it is very popular because of high quality and cost effective, and there are also versatile and complete line of relevant parts for it, which are used, such as leveling magnetic sensor, hall calling panel, overload control device, all kinds of limit switch and so on. And it will give you more safer protection ,and just use it!



Technical Paramters:

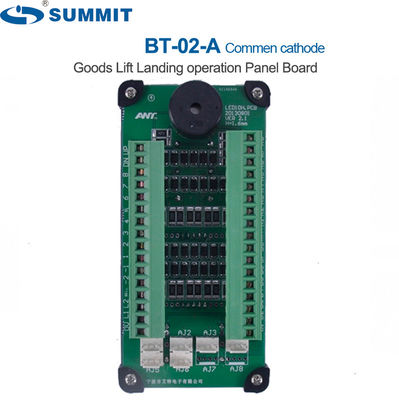

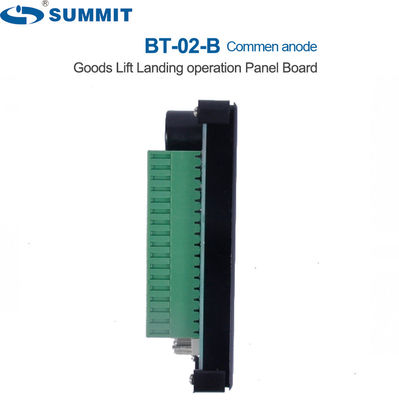

Model number: BT-02-A BT-02-B
Operating Voltage DC24V
polarity Common cathode Common anode
Power ≤2W
Display mode Decimal code or BCD code
Suitable application 2-5 floors ( max up to 6 floors, it can be customized)
Layer display 1 position digital tube display
Direction display 1 pc of up and down arrow
Special display Open or closing tips
Voice Prompt Buzzer

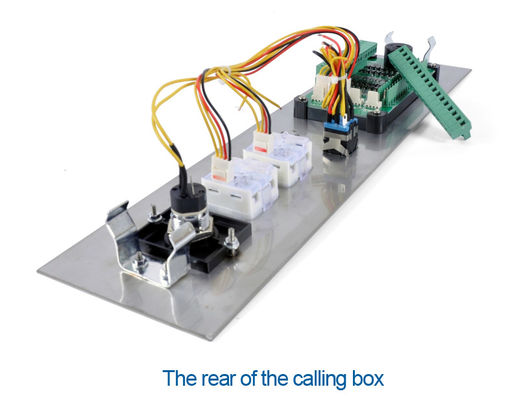

The common cathode board Installation diagram Sketch:

ANT BT-02-B Dumbwaiter Controller Goods Lift Car Operation Panel Box LED Display 0

ANT BT-02-B Dumbwaiter Controller Goods Lift Car Operation Panel Box LED Display 1

ANT BT-02-B Dumbwaiter Controller Goods Lift Car Operation Panel Box LED Display 2


ANT BT-02-B Dumbwaiter Controller Goods Lift Car Operation Panel Box LED Display 3

Instruction:

Your trustworthy partner-SUMMIT
With more than 20 years experience in the elevator and lifting industry and with our highly qualified and dedicated staffs, we can provide you the best possible sensor and weight measuring solutions in all types of installations. SUMMIT ensures safety and quality at all steps of elevator and lifting. We at SUMMIT would like to be more close to you, we listen to you, understand your needs and provide the best solution.
- SUMMIT is your trustworthy partner you can rely on.
ANT BT-02-B Dumbwaiter Controller Goods Lift Car Operation Panel Box LED Display 4
