SUMMIT Dumbwaiter Controller Panel DC24V Three Layers Lift Operating Panel COP
| Place of Origin | NINGBO, CHINA |
|---|---|
| Brand Name | SUMT, ANT |
| Certification | CE |
| Model Number | 3X3station |
| Minimum Order Quantity | MOQ:4pcs |
| Price | Negotiable |
| Packaging Details | Box+carton, 15pcs/Carton, 30kg/carton, carton size: 52X51X28cm |
| Delivery Time | 3-20 working days depending on the quantity |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Dumbwaiter Calling Panel | Voltage | DC24V |
|---|---|---|---|
| Floor Number | Suitable To 3 Floors | Application | Particuarlly For Goods Lift /dumbwaiter |
| Display Mode | Decimal Code | Calling Number | 3pcs/each Set, 1 With Lock |
| High Light | SUMMIT Dumbwaiter Controller Panel,Dumbwaiter Controller Panel DC24V,DC24V Three Layers Lift Operating Panel |
||
Product Description
SUMMIT DC24V 2 floors three layers service lift/ Goods lift hall call operation panel (COP)
Description:
The calling panel is designed particularly used for the goods lift or dumbwaiter, and it is available from 2 floor to six floors
Technical Paramters:
| Production name | Push button calling box |
| Working voltage | DC24V+/-5% (common cathode) |
| Display mode | Decimal code display |
| Rated power | <2W |
| Suitable for layer | 2-6 layer station |
| Panel material | 304 stainless steel(thickness 2mm) |
| Bottom box material | Galvanized iron sheet |
| Layer display | 1 position digital tube display |
| Direction display | 1PC of up and down arrows |
| Special display | Opening/closing tips |
| Voice prompt | Buzzer |
| Lay button | One button each floor |
| Scram button | 1 piece |
| Power lock | 1pice (2keys) |

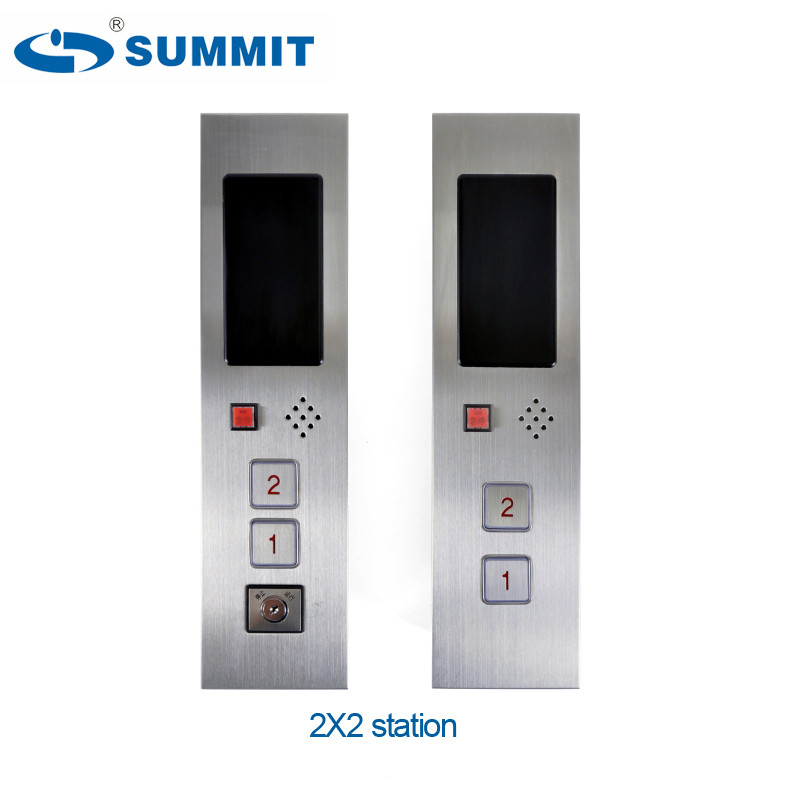

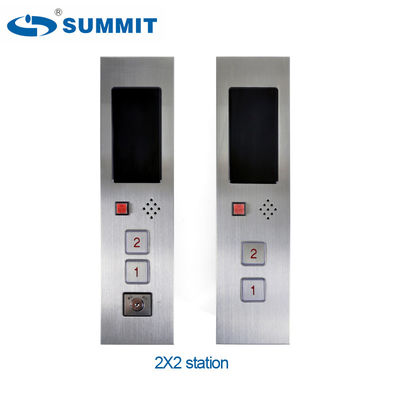

The Dumbwatier calling box 2*2 station size:
Instruction:
Your trustworthy partner-SUMMIT
With more than 20 years experience in the elevator and lifting industry and with our highly qualified and dedicated staffs, we can provide you the best possible sensor and weight measuring solutions in all types of installations. SUMMIT ensures safety and quality at all steps of elevator and lifting. We at SUMMIT would like to be more close to you, we listen to you, understand your needs and provide the best solution.
- SUMMIT is your trustworthy partner you can rely on.
