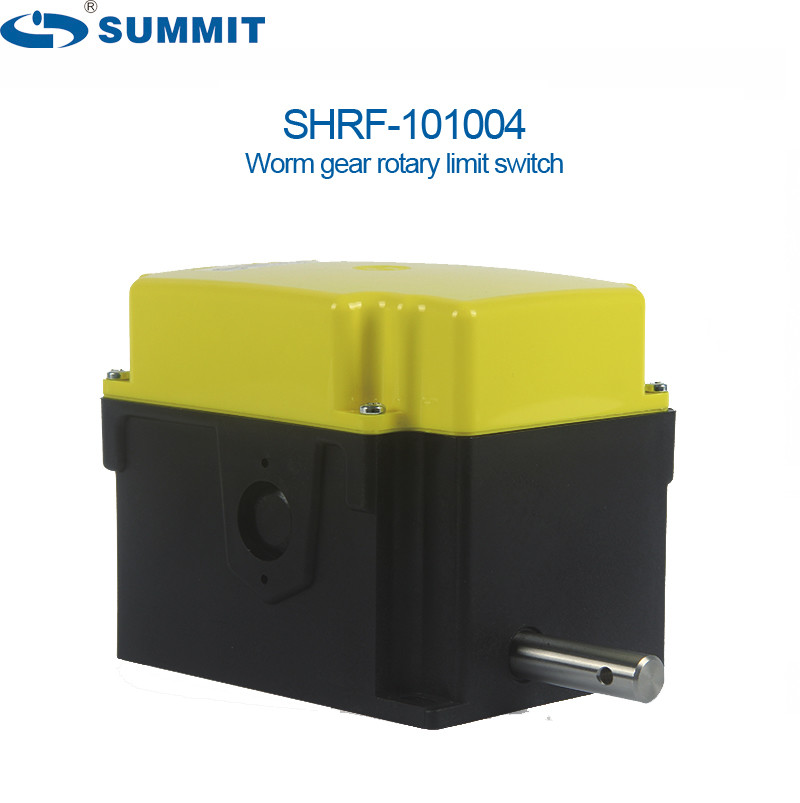

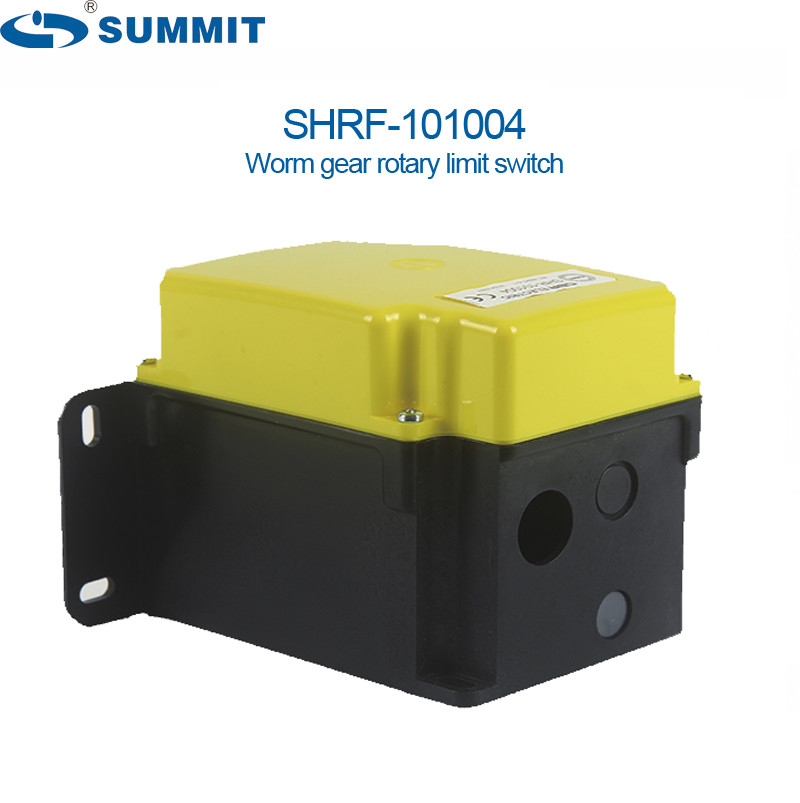

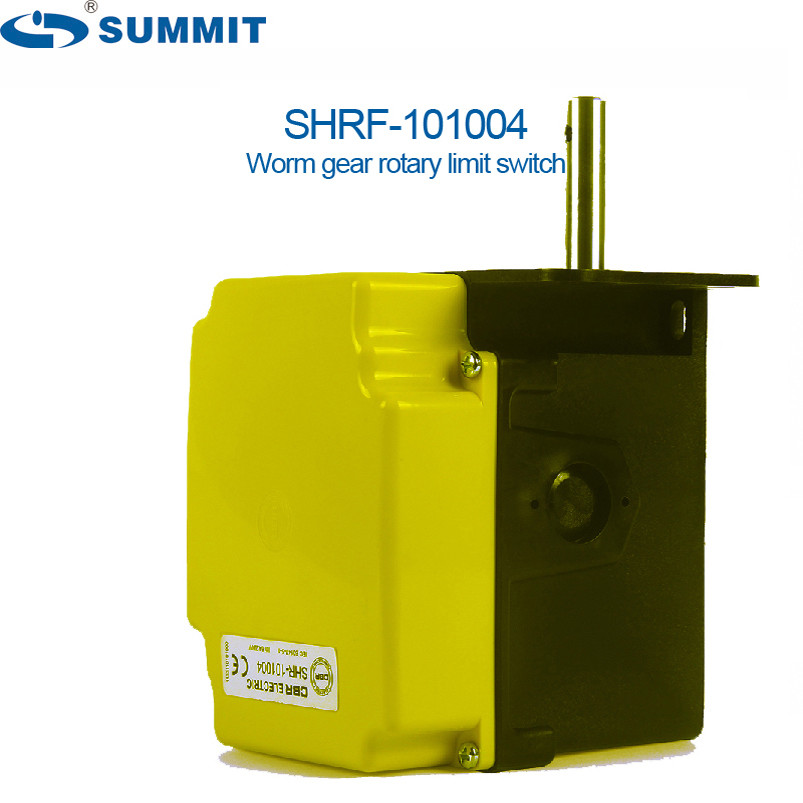

Worm Rotary Gear Limit Switch Crane Rotary Limit Switch Electric Hoist
| Place of Origin | NINGBO CITY, CHINA |
|---|---|
| Brand Name | SUMT, CBR |
| Certification | CE |
| Model Number | SHRF-101004 |
| Minimum Order Quantity | MOQ:20pcs |
| Price | Negotiable |
| Packaging Details | Box+carton, 66X32X52cm/carton, G.W.:5kg/carton, 20pcs/carton |
| Delivery Time | 3-20 working days( depending on the quantity) |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Engineer Plastick | Application | Chain Hoist, Wire Rope Hoist Protection |
|---|---|---|---|
| Ratio | 100:1 | Contact Typel | NO/NC |
| Drive | Worn Gear | Standards | IEC/EN 61058-1, UL 1054 |
| High Light | Worm Rotary Gear Limit Switch,Electric Hoist Rotary Gear Limit Switch,Worm Crane Rotary Limit Switch |
||
Product Description
Worm geared rotating cam 1:100 rotary limit switch for industrial eot crane, eletric hoist
Description:
Rotary geared limit switch is used to trip motor supply when the moving loads reach the extreme end positions of working zone. Rotary geared limit switches are suitable for use on reversing drives such as Hoists, winches, rolling mills and various other mechanisms used in steel plants such as coke oven, feeding machinery etc.
The CBR rotary gear limit switch is a device used to control the number of rotation direction angle of industrial and building machines. A typical application is controlling the position of the rolling shutter door or overhead cranes etc… . The unit, through a gear system and cams transmission, controls 2, 4 or more
microswitches so that after a defined number of revolutions, it can prepare themotor or the device to start or stop running. The microswitches have a calibration screw that operates independently on each cam; so it can calibrate the opening
Features:
- Features:
- Sturdy design
- Long life
- Requires less maintenance
- High cost performance and reliable
Specifications:
| Model | SHR-101004 |
| Case | glass fiber reinforced,thermoplastic |
| Ratio | 100:1 |
| Protection class | IP65 |
| Shaft material | Stainless steel |
| Fixing type | bottom / front (flanged version) |
| Max n° of microswitch | 4 |
|
Climate temperature |
-25°C + 70°C
|
| Cable entry | M20 or M16 (max 4) |
| Microswitch cams | self-lubricating |
| Micrometric adjustment screw | zamak material |
| Rated insulation voltage [Ui] | 250V |
| Contact block | 1NC+1NO changeover fast trigger |
| Contact block contact | silver plated / self cleaning |
| connections | fast-on 0.8x6.3mm |
| Standards | IEC/EN 61058-1, UL 1054 |
| Rated thermal current [Ith] | 16A |
| Drive | Worm drive |
We SUMMIT has been providing versatile load-limitation systems for all types of cranes and especially overhead cranes. In particular, we have supplied them to the very important players in the lifting and material handling industry as well as in steel industry. That is why we can claim that we have a solid experience and are highly dependable as regards load-limiting devices for cranes which enables us to equip the most complex of systems.
We offers a very wide range of overload limiter and applicable to versatile industry application:
- Load cells and load pins (from 1000 kg up to 10T, higher capacity on request) such as Split type overload limit switch: OMS-370C+CRN-GX, OMS-350+CRN+GX and so on.
- clamp on wire rope load limiter:SUMT-QZX(A), OMS-370C+RH-EC, OMS-370C+RH-BC and so on
- Current detection overload limiter (CWL-010)
- Cross head limit switch
- Geared limit switch(worm rod lift switch)
- tension link load limiter (RHP-X)
- Load limiters with analogue or digital outputs(OMS-820)
Module design and easy and free combination to suit different installation demand.
Solutions to meet your integrated needs
Application:
Overload limiter prevent accidents occurring due to the raised load dangerously exceeding the normal value as established by the manufacturer or by the user of the lifting device. It makes a vital contribution to the safety of operatives.
A comprehensive kit for crane/hoist overload protection that includes everything needed to install or retrofit on bridge cranes is now available from SUMMIT load weighing Systems
