OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller

  • OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
  • OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
  • OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
  • OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
  • OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
Place of Origin NINGBO CITY, CHINA
Brand Name SUMIT, ANT,UTING
Certification CE
Model Number OMS-370C
Minimum Order Quantity 20pcs
Price USD42-65/PC
Packaging Details box+carton, 20pcs/carton, size:38X26X32cm/carton
Delivery Time approx3-5 working days depending on the qty
Payment Terms T/T, Western Union, MoneyGram, Paypal
Supply Ability 5000-10000pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 18-65V/65-440V Load Cell Entry Number 2pcs
Alarm Relay 1 Pcs Output Material ABS
High Light

OMS-370C Crane Load Limiter

,

OMS-370C Overload Controller

,

Overload Safety Protection Overload Controller 440V
Leave a Message
Product Description

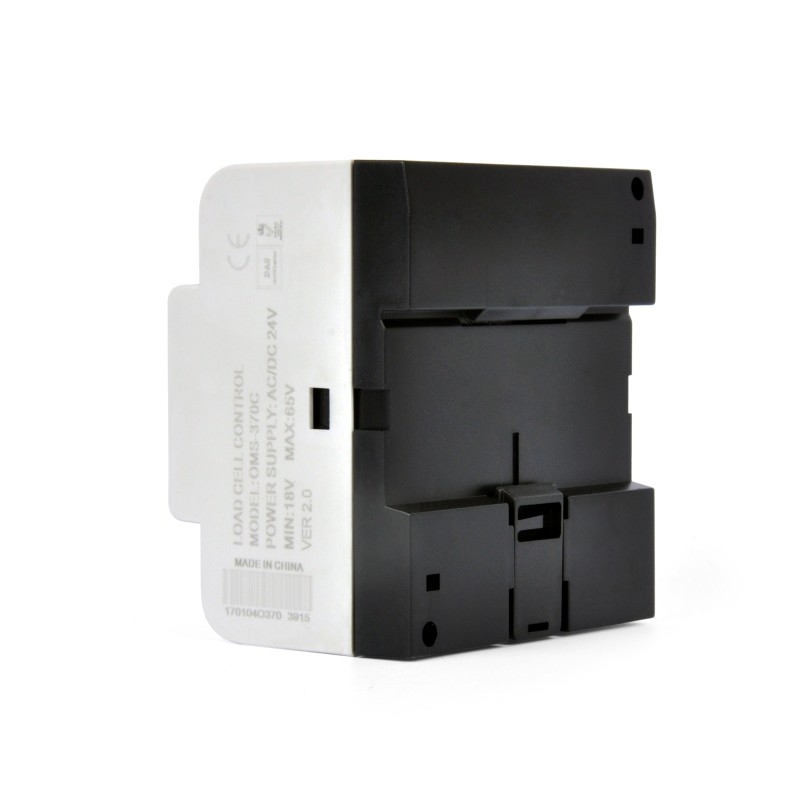

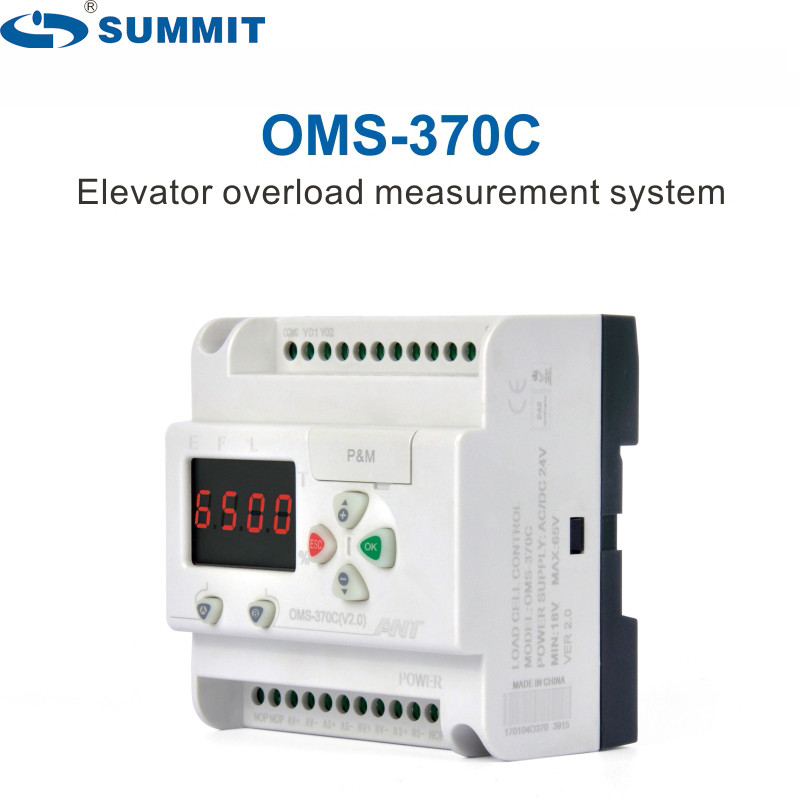

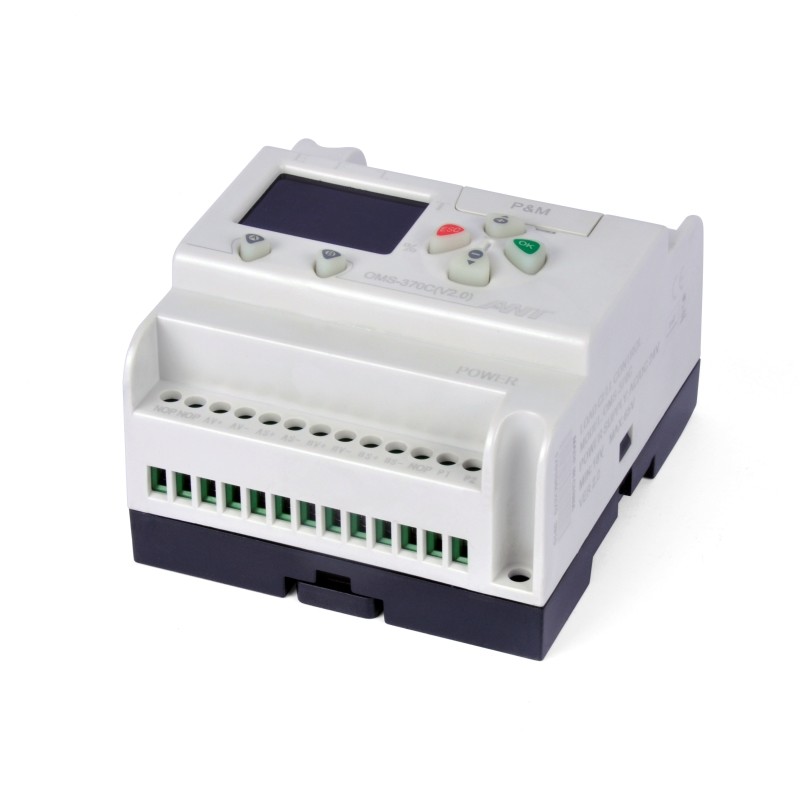

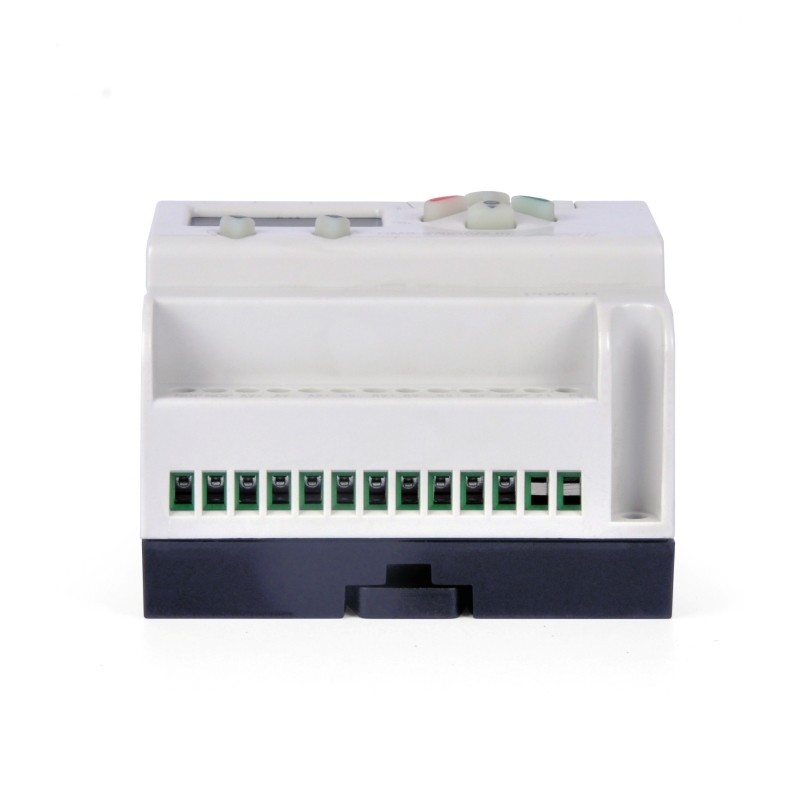

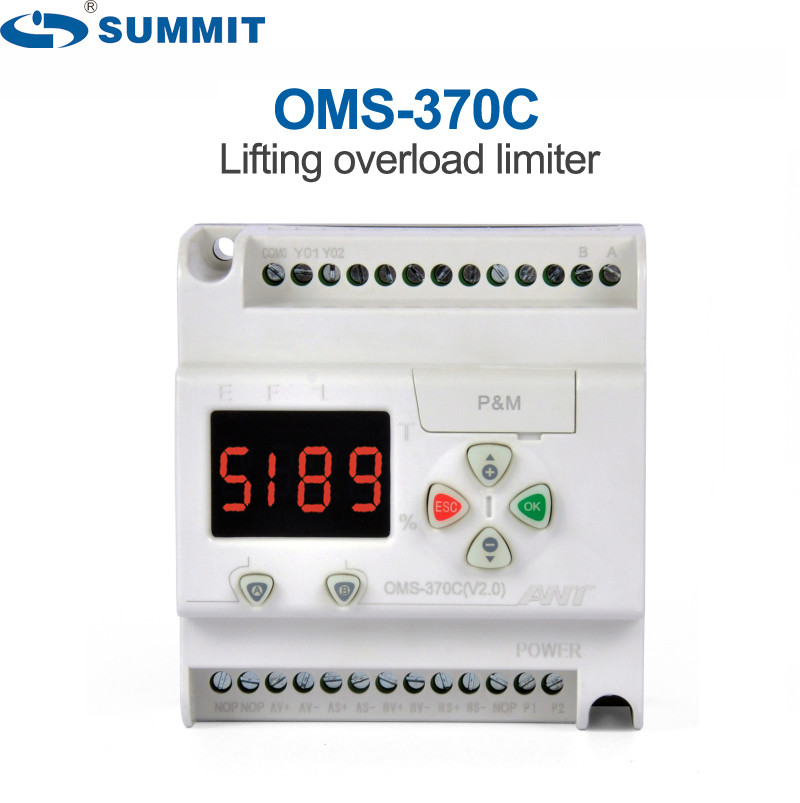

SUMIT OMS-370C crane and wire rope hoist overload safety protection load limit switch and LED display economic overload controller



Description:
The lifting load limiter OMS-370C is designed for the crane and electric hoist overload lifting protection, or other lfiting equipment such as overhead travelling cranes,hoists, elevators, etc.
It can be connected on any weight detecting sited in: fixed spur, turn pulley, carrier, cable, etc. Optionally it has an output for weight booster (on pannel of push buttons),easily calibrate the system



Feature:

1. DIN rail-mounted, easy mounting

2. Wide range voltage input, more stable and flexible

3. RS485 connection, and easy connect with LED scoreboard

4. 2 entry of weighing load cells

5. Compatible with all load weighing sensors manufactured by ANT,SUMMIT

6. With load cells, it constitutes the complete load limiter

Control Unit model: OMS-370C
Operation Voltage: AC/DC18-48V Display mode: Weight/percentage
Nominal power: ≤4W Key number: 6
Entry qty of load cells 2 pcs Measuring precision: 0.1%
Relay Number: 1(overload,NO/NC) Operation temperature: -45-+85degree
Contact Load: 5A 250VAC/5A 30VDC Sensor operation voltage: Max DC15V
Display Type: 4 digits 0.36 inch LED display External screen External big LED screen (optional)
Connection terminals type for load cell Compatible with 4-core bank wire



OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller 0OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller 1
