SUMMIT Crane Load Limiter Switch Electric Hoist Digital Load Limit Switch Overload Crane

  • SUMMIT Crane Load Limiter Switch Electric Hoist Digital Load Limit Switch Overload Crane
  • SUMMIT Crane Load Limiter Switch Electric Hoist Digital Load Limit Switch Overload Crane
  • SUMMIT Crane Load Limiter Switch Electric Hoist Digital Load Limit Switch Overload Crane
Place of Origin NINGBO CITY, CHINA
Brand Name SUMIT, ANT,UTING
Certification CE
Model Number OMS-350 (SUMT-QZX(B)
Minimum Order Quantity 20pcs
Price USD42-65/PC
Packaging Details box+carton, 20pcs/carton, size:38X26X32cm/carton
Delivery Time approx3-5 working days depending on the qty
Payment Terms T/T, Western Union, MoneyGram, Paypal
Supply Ability 5000-10000pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 18-65V/65-440V Load Cell Entry Number 1pcs
Alarm Relay 1 Pcs Output Material ABS
Connector Type Aviation Plug
High Light

SUMMIT Crane Load Limiter Switch 440V

,

Electric Hoist Digital Load Limit Switch

,

Overload Crane Load Limiter Switch
Leave a Message
Product Description

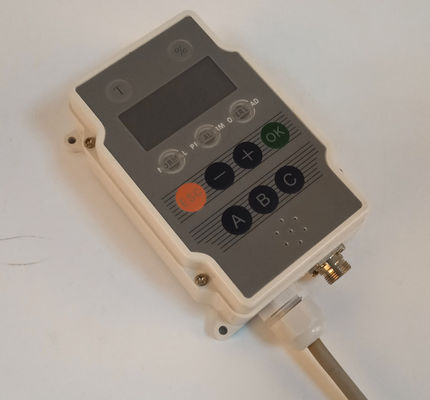

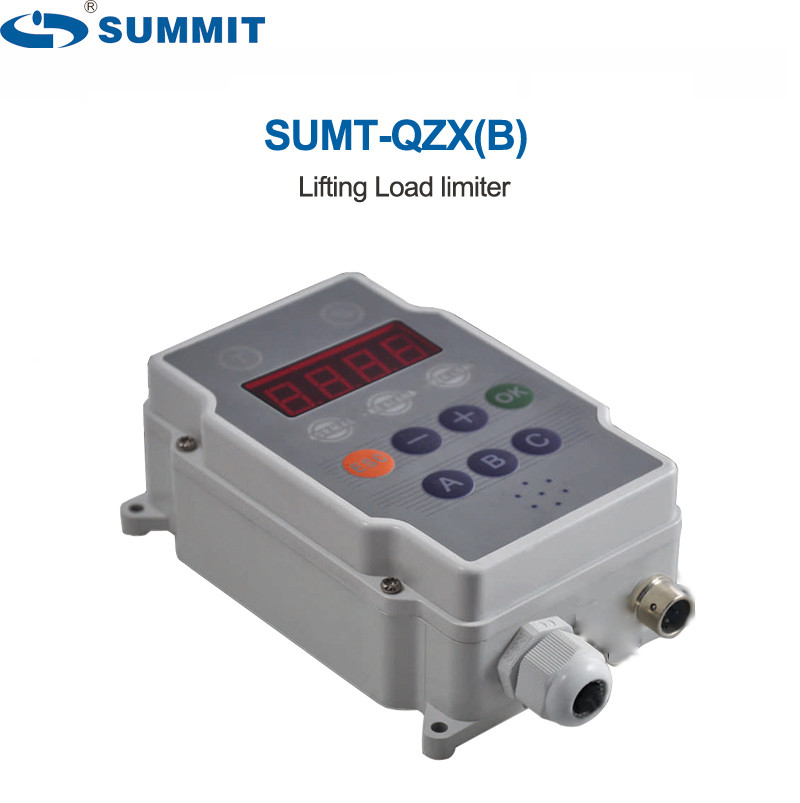

SUMMIT OMS-350 (SUMT-QZX(B)) Electric Hoist & Crane Overload Safety Protection Digital Load Lifting Limit Switch



We SUMMIT has been providing versatile load-limitation systems for all types of cranes and especially overhead cranes. In particular, we have supplied them to the very important players in the lifting and material handling industry as well as in steel industry. That is why we can claim that we have a solid experience and are highly dependable as regards load-limiting devices for cranes which enables us to equip the most complex of systems.

Description:
The lifting load limiter OMS-350C is designed for the crane and electric hoist overload lifting protection, or other lfiting equipment such as overhead travelling cranes,hoists, elevators, etc.
It can be connected on any weight detecting sited in: fixed spur, turn pulley, carrier, cable, etc. Optionally it has an output for weight booster (on pannel of push buttons),easily calibrate the system



Feature:

1. Easy mounting

2. Wide range voltage input, more stable and flexible

3. RS485 connection, and easy connect with LED scoreboard

4. 2 entry of weighing load cells

5. Compatible with all load weighing sensors manufactured by ANT,SUMMIT

6. With load cells, it constitutes the complete overload limiter

Control Unit model: OMS-350C
Operation Voltage: AC/DC18-48V Display mode: Weight/percentage
Nominal power: ≤4W Key number: 6
Entry qty of load cells 2 pcs Measuring precision: 0.1%
Relay Number: 1(overload,NO/NC) Operation temperature: -45-+85degree
Contact Load: 5A 250VAC/5A 30VDC Sensor operation voltage: Max DC15V

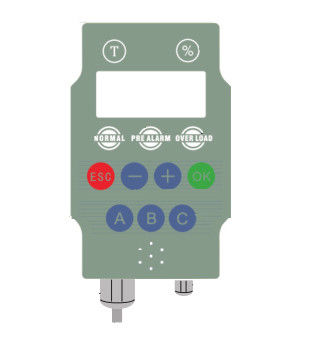

Display Type: 4 digits 0.36 inch LED display External screen External big LED screen (optional)
Connection terminals type for load cell Compatible with 4-core bank wire
