Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor

  • Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor
  • Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor
  • Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor
  • Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor
  • Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor
Place of Origin NINGBO CITY, CHINA
Brand Name SUMIT, ANT,UTING
Certification CE
Model Number OMS-160
Minimum Order Quantity 20pcs
Price USD42-65/PC
Packaging Details box+carton, 20pcs/carton, size:38X26X32cm/carton
Delivery Time approx3-5 working days depending on the qty
Payment Terms T/T, Western Union, MoneyGram, Paypal
Supply Ability 5000-10000pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 18-48V Load Cell Entry Number 1pcs
Alarm Relay 1 Pcs Output Material ABS
High Light

Intelligent Overhead Lifting Load Limiter

,

Lifting Load Limiter Mini 48V

,

Electronic Load Control Monitor 48V
Leave a Message
Product Description

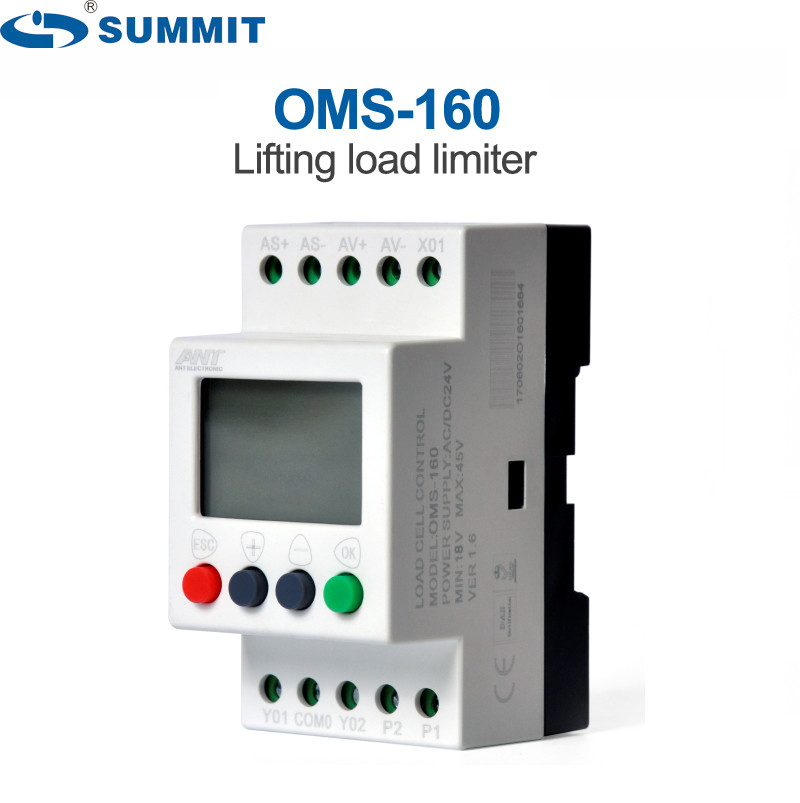

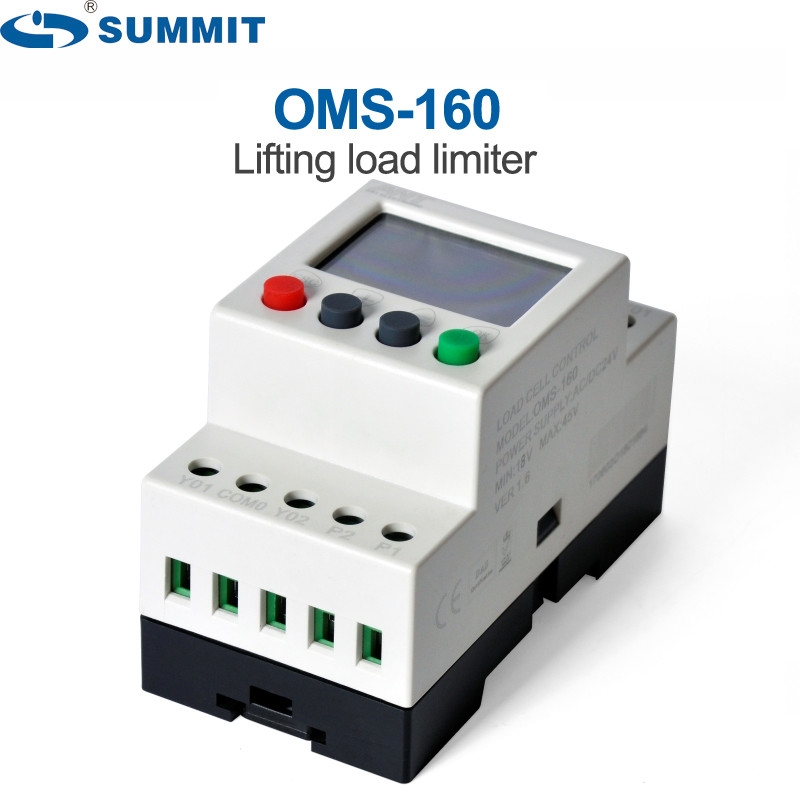

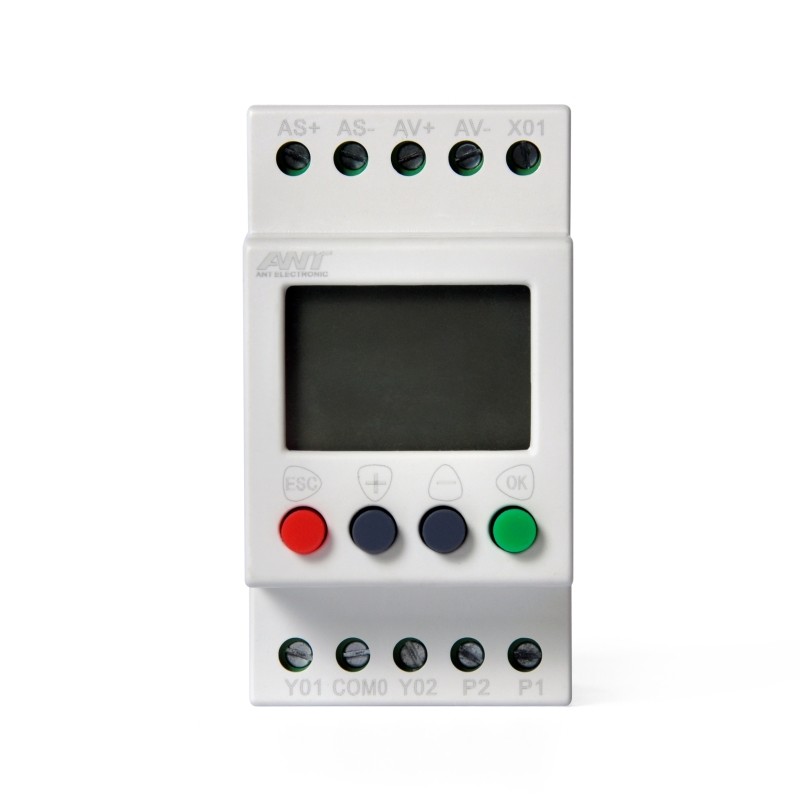

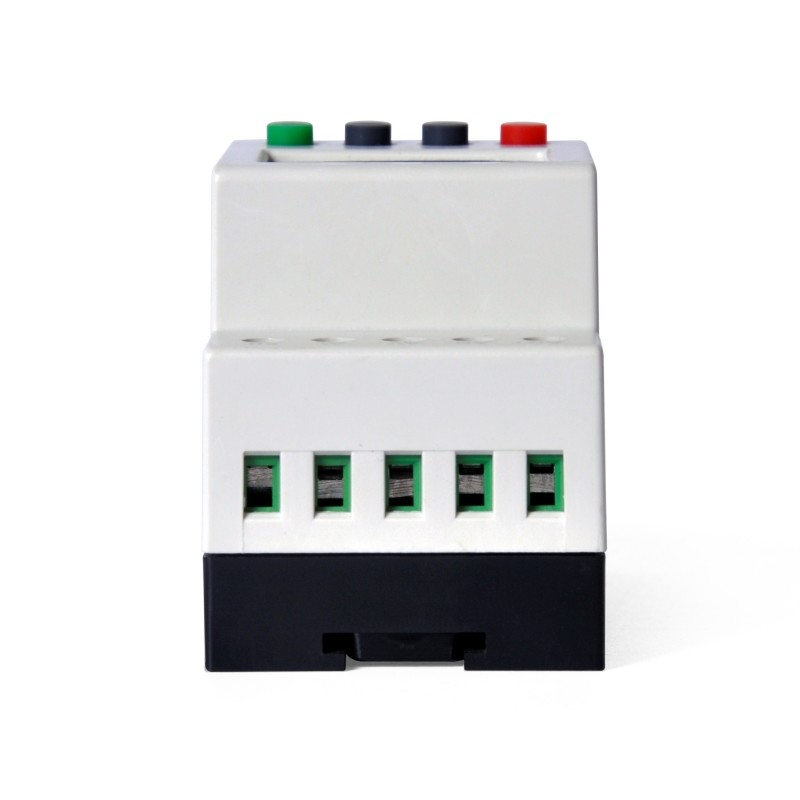

SUMMIT OMS-160 mini DIN rail intelligent electronic load control monitor for crane hoist overload protection



We SUMMIT has been providing versatile load-limitation systems for all types of cranes and especially overhead cranes. In particular, we have supplied them to the very important players in the lifting and material handling industry as well as in steel industry. That is why we can claim that we have a solid experience and are highly dependable as regards load-limiting devices for cranes which enables us to equip the most complex of systems.

Description:
The lifting load limiter OMS-160 is designed for the crane and electric hoist overload lifting protection, or other lfiting equipment such as overhead travelling cranes,hoists, elevators, etc.
It can be connected on any weight detecting sited in: fixed spur, turn pulley, carrier, cable, etc. Optionally it has an output for weight booster (on pannel of push buttons),easily calibrate the system



Feature:

1. Easy mounting

2. Wide range voltage input, more stable and flexible

4. 1 entry of weighing load cells

5. Compatible with all load weighing sensors manufactured by ANT,SUMMIT

6. With load cells, it constitutes the complete overload limiter

Control Unit model: OMS-160
Operation Voltage: AC/DC18-48V Display mode: Weight/percentage
Nominal power: ≤4W Key number: 4
Entry qty of load cells 1 pcs Measuring precision: 0.1%
Relay Number: 1(overload,1NO/1NC) Operation temperature: -45-+85degree
Contact Load: 5A 250VAC/5A 30VDC Sensor operation voltage: Max DC15V
Display Type: 4 digits 0.36 inch LED display Connection terminals type for load cell Compatible with 4-core bank wire



Crane Load limit switch OMS-160 Size and wiring diagram:

Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor 0



Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor 1Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor 2

Intelligent Overhead Lifting Load Limiter Mini DIN Electronic Load Control Monitor 3



A comprehensive kit for crane/hoist overload protection that includes everything needed to install or retrofit on bridge cranes is now available from ANT Lifting Load Weighing Systems.
