LC-MV59X Elevator Load Measuring System Cylindrical Elevator Load Weigher
| Place of Origin | NINGBO CITY, CHINA |
|---|---|
| Brand Name | SUMT, ANT |
| Model Number | LC-MV59X |
| Minimum Order Quantity | MOQ:20sets |
| Price | USD15-30/PC |
| Packaging Details | Box+carton, 50SETS/Carton, 14kg/carton, carton size: 38x21.5x32cm |
| Delivery Time | 3-20 working days depending on the quantity |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sensing Distance | 2-9mm±15% | Sensing Object | Magnetism Metal |
|---|---|---|---|
| Voltage | DC24V | Cable Length | 3m, 4 Blank Wire |
| Installation Location | Under Cab/wire Rpe Hitch Poit | Principle | Hall Effect |
| Structure | Integrated | Alarm Relay Output | 1 NO/NC |
| High Light | LC-MV59X Elevator Load Measuring System,Elevator Load Measuring System Cylindrical,Cylindrical Elevator Load Weigher |
||
Product Description

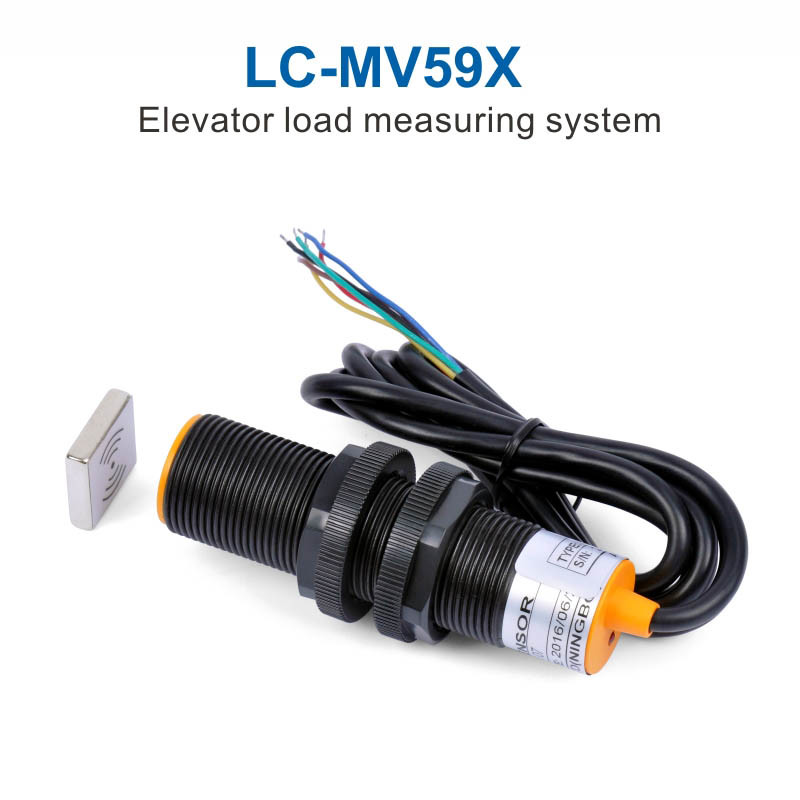

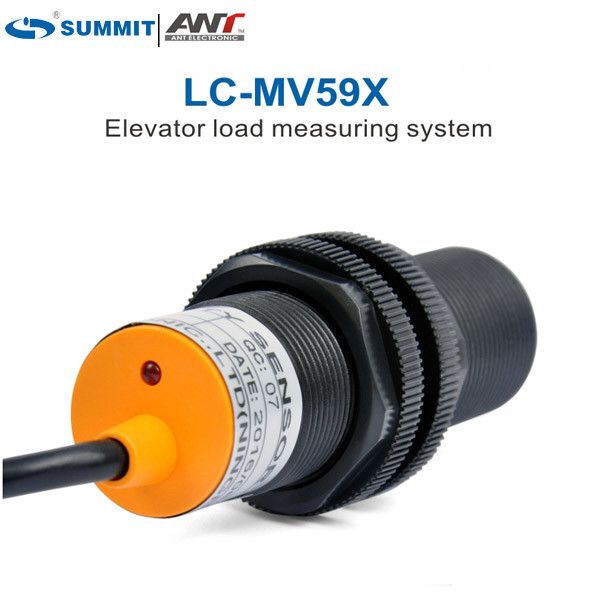

SUMMIT ANT LC-MV59X cylindrical hall effect proximity magnetic sensor switch elevator load weighing device
Installation loacation: under cab/ frame struction
Elevator cabin overload control device
Description:
This electronic elevator load testing device LC-MV59X/LC-58S is applicable to all elevators with movable car platform in need of overload signals. This device is of extremely high performance-price ratio. This appliance is to overcome the inherent disadvantage of the mechanical overload switch and to replace it, an it is planetary load measuring system for elevator &lift overload protection because of cheap price and easy installation and maintenance.
Features:
- No-contact induction operate mode, without mechanical movements, directly installed in the position of original overload switches or car frame beam and so on, without changing elevators’structure;
- Applying high-tensile induced magnet, maximally improving anti-interference ability of the system;
- Electric property conforms to the standard of “International Electric Community”;
- Accurate in localization, small in volume, and convenient in installation and debugging. Simple in structure, cheap in price.
- Compact size and high performance ratio, easy installation.
Working Principle:
This elevator&lift overload control system LC-MV59X weighs the elevator car load based on the principle of the elastic deformation of movable elevator car platform caused by loading with the hall effect switch sensor measuring the change of displacement, fulfilling the aim of load weighing, and it is fast and accurate.
| Model | LC-MV59X(Cylindrical) | LC-58C(rectangle) |
| Sensingdistance | 2-9mm±15% | 2-9mm±10% |
| Differential travel | 15% max.of sensing distance | 10% max.of sensing distance |
| sensing object | Magnetism Metal | Magnetism Metal |
| Response speed | 0.2KHz | 0.2KHz |
| Power supply voltage | 12V~24VDC | 12V~30VDC |
| Control output | Relay output (1NC,1NO) | Relay output (1NC,1NO) |
| Indicator | Red LED (Signal output) | Red LED (Signal output), Green LED (Power) |
| Temperature influence | -10~70℃,Max. Of sensing distance at 23℃ in the temperature rang±5% | |
| Voltage influence | ±2.5% max. Of sensing distance in the rated voltage range±10% | |
| Insulation resistance | 50MΩ | |
| Dielectric strength | 500VAC at 50/60Hz for 1 min | |
| Connection method | Pre-wire models(standard length 1.2m) | |
Wiring Diagram:
Installation location&Size:
Instruction:
The purpose of the SUMMIT Load Weighing system is to measure the load in the elevator and pro-vide usable information about the load to the elevator controller. This information is used forpre-torquing and for dispatching decisions, e.g. light load anti-nuisance, heavy load and over-load.
The system usually consists of a sensor or group of sensors mounted on the elevator’s some position such as clamping on wire rope, or under cabin, under the wire rope plate installation and a control unit. The sensor(s) provide a signal to the control unit directly related to the amount of load in the cab. The load weighing control accepts this signal and provides usable data to the elevator controller in the form of an analog signal and discrete relay contacts.
