Split Type Elevator Load Weigher 3000kg RHP-E-OMS-560 Elevator Load Control Device
| Place of Origin | NINGBO CITY, CHINA |
|---|---|
| Brand Name | SUMT, ANT |
| Model Number | OMS-560-RHP-E-3T |
| Minimum Order Quantity | MOQ:6sets |
| Price | USD100-140/PC |
| Packaging Details | Box+carton, 6SETS/Carton, 24kg/carton, carton size: 45x34x36.5cm |
| Delivery Time | 3-20 working days depending on the quantity |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel | Rated Load | Max 3000kg |
|---|---|---|---|
| Voltage | DC19-29V | Cable Length | 8m, 4 Blank Wire |
| Installation Location | Under The Rope Hitch Plate | Display Mode | Weight/percentage |
| Structure | Split Type | Alarm Relay Output | 5(overload,full Load,empty Load, Optical,acousti |
| High Light | Split Type Elevator Load Weigher 3000kg,Elevator Load Weigher RHP-E-OMS-560,RHP-E-OMS-560 Elevator Load Control Device |
||
Product Description

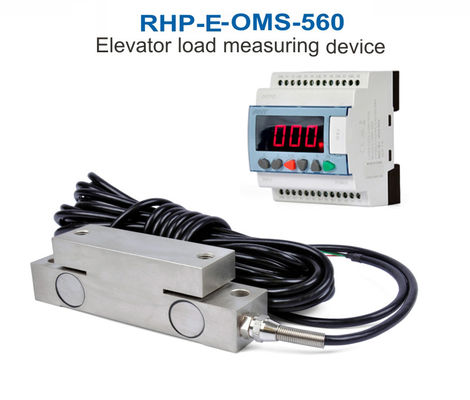

SUMMIT Split type elevator weighing system3000kg RHP-E-OMS-560 mounting under the rope hitch plate elevator load control device
Installation loacation: Between wire rope hitch plates:OMS-560-UC-AP
Description:
The elevator over load control device OMS-560-RHP-E is one kind of split type load weighing solution ,and it consists of 1 or 2 pressure load sensor RHP-E and a controller OMS-560, and the pressure load cell is typically plated under the wire rope hitch plate. This method have no impact on the crossing height requirements and are there-fore especially suitable for new installation and modernization projects.
Features:
- Cost efficient and precise method
- Very easy to install
- Static load at fixing point(under the plate of wire rope attachment)
- Suitable for the new installations and modernization project
- Menu-guided operation
- 5 relays output overload,full,half empty,optical, audio output
- DIN Rail or on flat surface mounting with screws
- IP-65 rated plastic box.
- Integrated software to correct weight increases due to compensating chain.
- Display load as well as percentage
- Protecting important data from being disturbed by password
- Automatic correction of zero drift, makes the equipment in optimum stage
- Self-learning function, regulating high floor additional weight error
- Control equipment swap entirely,self-diagnosis and alarming
- Self-learning operating conducted by any fixed load
| Control Unit:OMS-560 | |||
| Operation Voltage | AC/DC16-48V | Sensor operation voltage | DC5V |
| Nominal power | 4W | Signal Hold Voltage | AC/DC12-45V |
| Input Channel (Load Cell ) | 2 | Measuring precision | 0.1% |
| Relay Number |
5(overload,full,half empty,optical, audio output) |
Operation temperature | -45degree-+85degree |
| Contact Load | 8A250VAC,5A 250VAC,5A 30VDC | Size | 90x84x58mm |
| Display Type | 4 digits 0.56 inch LED | Weight | 265g |
| Display mode | Weight/percentage | Shell material | ABS |
| Model: | RHP-E | ||
| Rated Load | 3000kg/PC | Output Resistance | 700M+/-2 ohm |
| Rated Output | 2.0+-0.02%mv/v | Safe Overload | 150% F.S. |
| Total error | +/-0.5% F.S | Ultimate Overload | 200% F.S. |
| Repeatability | +/-0.5% F.S. | Construction material | Stainless Alloy steel |
| Creep 30min | +/-0.05% F.S/30min | Protection Class | IP68 |
| Zero Balance | +/-1% F.S. | Insulation impedance | ≥5000Ω |
| T C SPAN | +/-0.02% F.S./10 degree Celsius | Cable length | 8m(black) |
| Operation temperature range | -30 to 70 degree Celsius | Connection type | 4 bank wire |
| Input Resistance | 760+/-10 ohm |
Excitation
|
DC 5-12V |

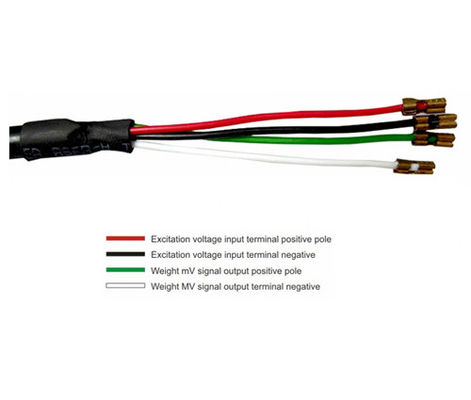

Wiring Diagram:
4 blank wires:
Installation location&Size:
Instruction:
The purpose of the SUMMIT Load Weighing system is to measure the load in the elevator and pro-vide usable information about the load to the elevator controller. This information is used forpre-torquing and for dispatching decisions, e.g. light load anti-nuisance, heavy load and over-load.
The system usually consists of a sensor or group of sensors mounted on the elevator’s some position such as clamping on wire rope, or under cabin, under the wire rope plate installation and a control unit. The sensor(s) provide a signal to the control unit directly related to the amount of load in the cab. The load weighing control accepts this signal and provides usable data to the elevator controller in the form of an analog signal and discrete relay contacts.
