WDS-MR100 Elevator Load Weighing Device Elevator Overload Measurement System

SUMMIT integrated WDS-MR100 clamped on multipe wire ropes tension measuring elevator load weighing device rated load 1000-3000kg

Description:

The intelligent SUMMIT load weighing device WDS-MR100 series are used to evaluate the load inside the car, and it is convenient and fast to clamp on multiple wire ropes,easy installation and WDS-MR100/200/300 series provides real time load information and uses that information to tell the controller how to operate accordingly, In addition, the user friendly keypad allows flexible programming. An automatic calibration mode is also available, This multiples wire ropes load weighing device is perfect for modernization as well as for new installations

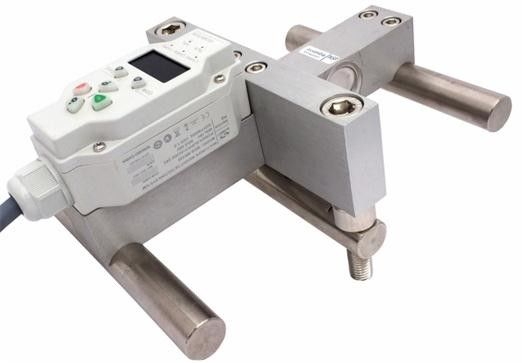

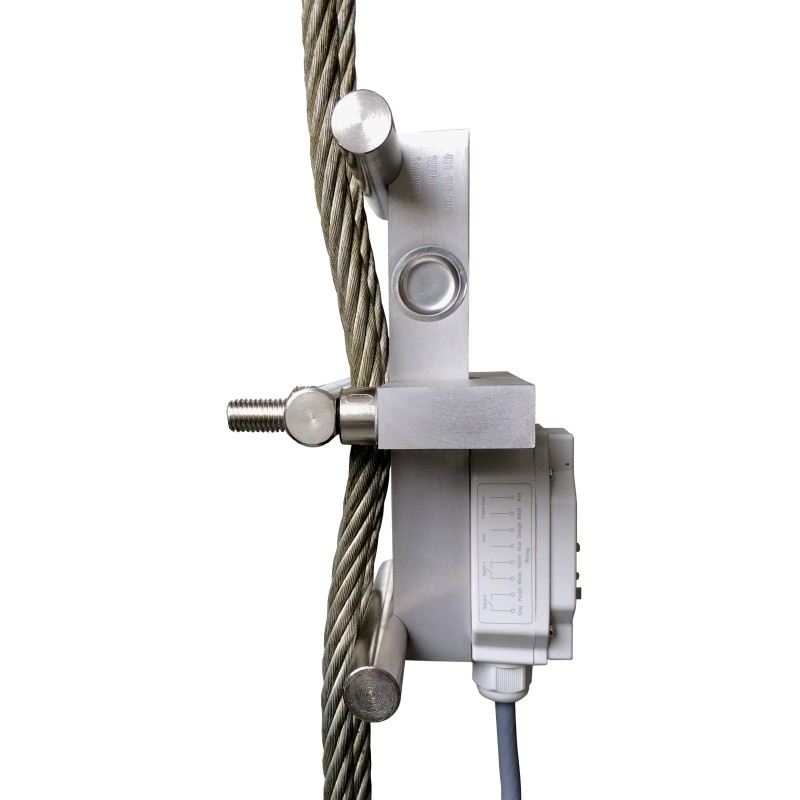

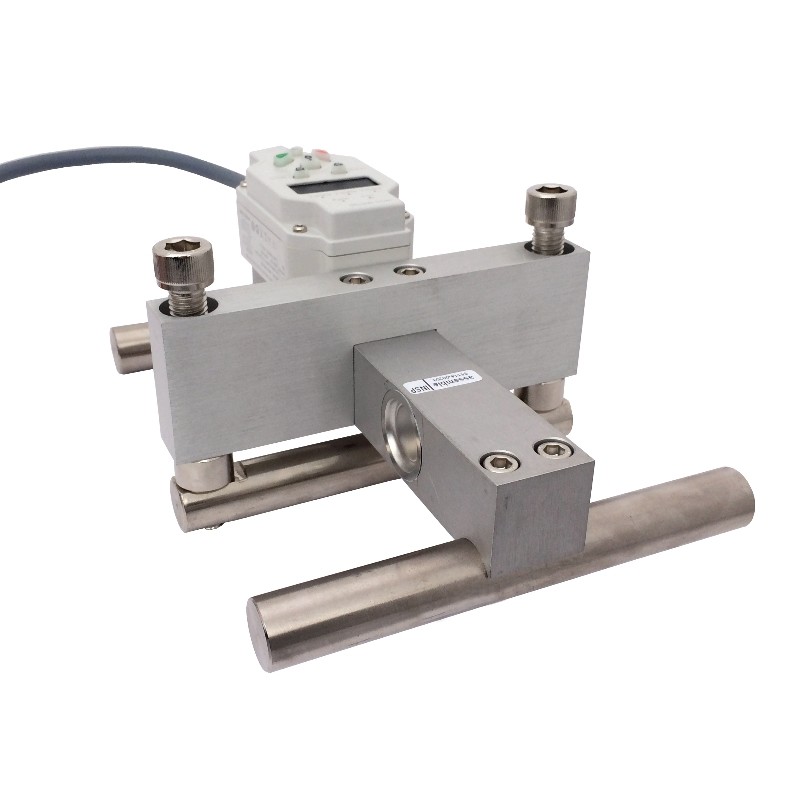

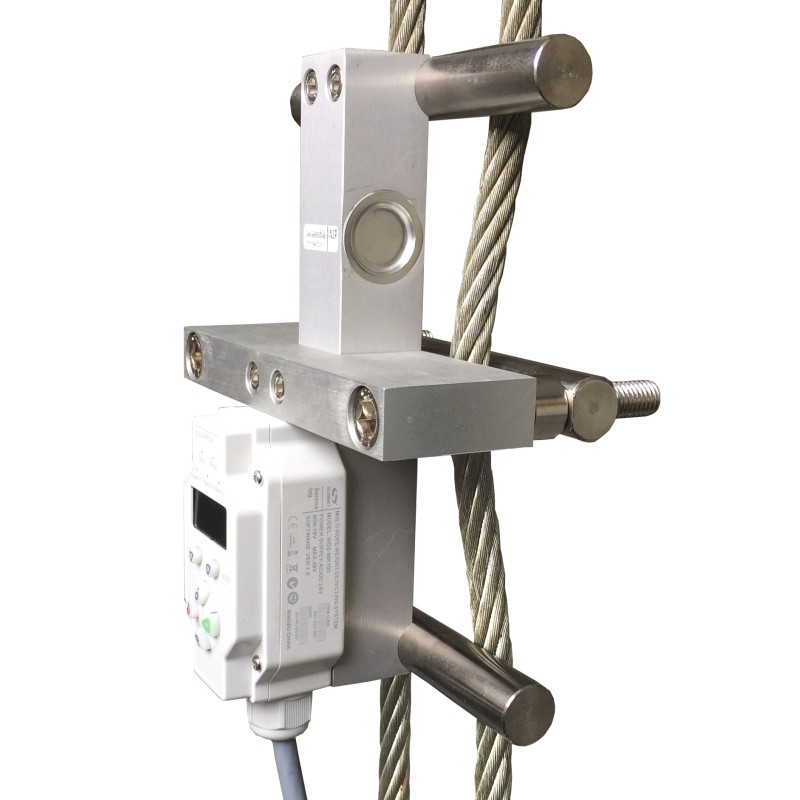

A typical SUMMIT WDS-MR100 assembly installation takes just a few minutes. Th load weighing ghing device WDS-MR200 is just attached to the ropes above the roof of the cab by means of a central clamp whose tightness is determined by a pair of spacers. (The two clamp spacers are precisely sized for different diameter rope; the rope diameter is engraved on the spacers.) The clamp presses the ropes onto two cylindrical sensors. The width of the clamp will vary with the dimension of the spread of the ropes

Features:

1. Overload weighting system with extremely attractive performance cost ratio
2. Meet the requirement of EN81
3. Controller configured with 6 keys and 4 digits LED display
4. Thanks to the integrated control unit, no additional cables are needed to connect the sensors and control unit
5. Easy installation, only a few minutes are needed to install multi-rope sensors
6. Suitable for steel rope diameter 8-16mm
7. Roping adjustable by keys
8. Rated load from 300kg to 4500kg depending on the roping setting, as much as 18000kg

Lod weighing device WDS-MR 100 Size:

SUMMIT Elevator Load Weighing Control device system could provide versatile installation

methods like rope hitch installation, under car platform installation, crossbeam installation, clamping on traction rope installation in order to offer a safe and comfortable elevator running status.

Universal device for working with different load cells:

1. Under floors:UC-AP-OMS-560

2. Clamping on wire rope:WDS series, RH-SM-OMS-560

3. Machine bed frane:RHP-X-OMS-560

4. Between the wire rope hitch plate:RHP-E-OMS-560

A solution providing very precise load weighing way, and Under cab sensors are not recommended for  modernization.Simple solutions for modernization with no impact on the existing regulated travel parameters

Very simple installation with no mechanical modification Cost-effective load weighing with a single sensor which can be scaled for a precise result.
