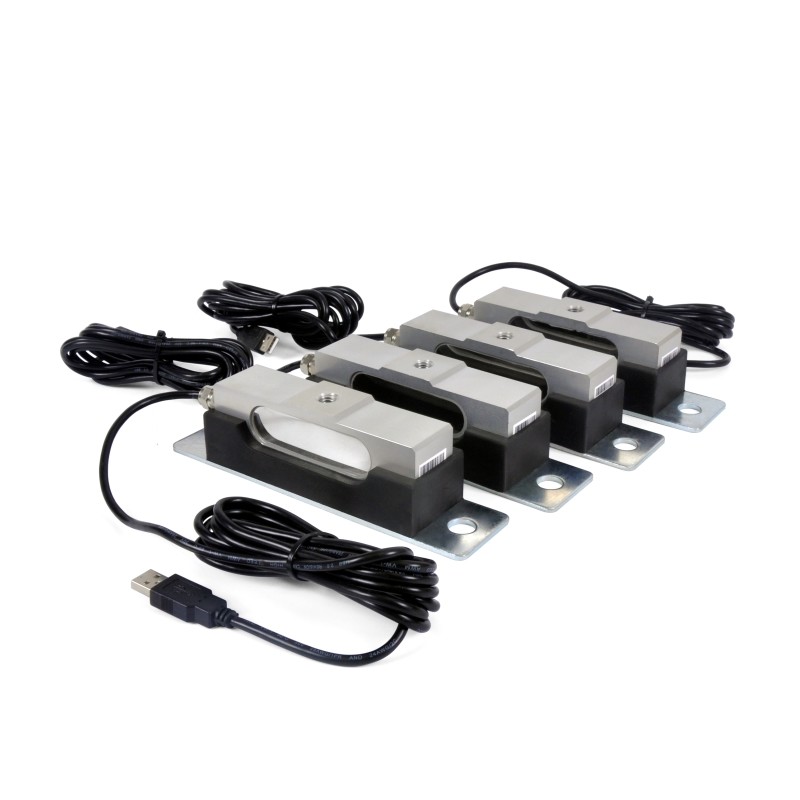

USB Interface Elevator Load Cell 800kg-3200kg Elevator Compression Load Cell
| Place of Origin | NINGBO CHINA |
|---|---|
| Brand Name | SUMT, ANT |
| Certification | CE |
| Model Number | UC-AP |
| Minimum Order Quantity | MOQ:500pcs |
| Price | USD10-30/set |
| Packaging Details | Box+carton, 38X26X32cm/carton, G.W.:27kg/carton. |
| Delivery Time | 3-20 working days depending on the quantity |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Elevator Cabin Load Cell | Rated Load | 800kg |
|---|---|---|---|
| Cable Length | 2.5M (load Cell) | Installation Position | Under Cabin |
| Meterial | Aluminum Alloy | Interface | USB Connector |
| High Light | USB Interface Elevator Load Cell,Elevator Load Cell 800kg,3200kg Elevator Compression Load Cell |
||
Product Description

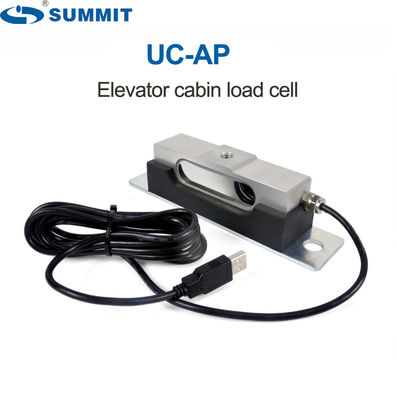

UC-AP USB terface 800kg-3200kg aerometal contruction rectangle elevator cabin mounting compression load cell
Description:
Rated load :800kg-3200kg rectangle under elevator cabin mounting compression load cell
SUMMIT Elevator Cabin load cell sensors UC-AP are supplied with their own integral rubber mounting arrangement, specifically designed for installation below the elevator & lift car. They easily mount under the cab and are extremely accurate, The UC-AP series load cell sensor are designed for use with new passenger lift up to 3200kg load (4pcs)
Note: Under cab sensors UC-AP series are not recommended for lift modernization or retrofit.
.
Features:
- Anodised aluminium construction
- Up to 4x800kg: 3200kg load (4 sensors)
- High accuracy,USB interface or plug
- Individual sensor can be replaced
- Perfect for new installations
- Load cell for installation under elevator cabin.
- Mounted on a silent-block pad that avoids the transfer of vibrations .

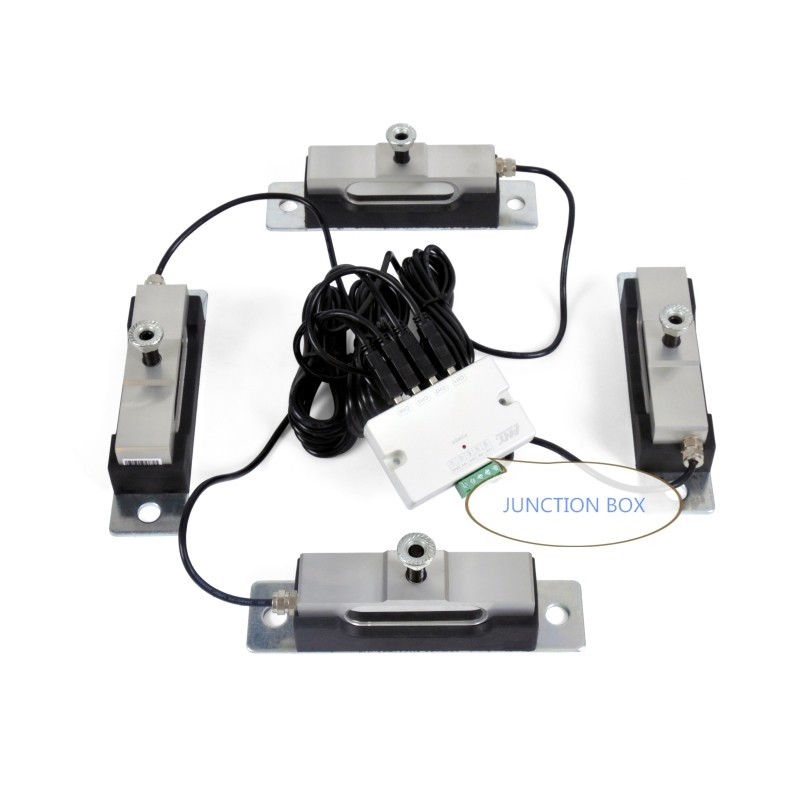

- Connected to the unit control of the OMS-560 series and able to install a quantity of 4 cells in parallel, and max up to 8pcs load cell UC-AP
- Adjustable locking screw to adjust the unevenness of the bottom of the car during assembly
Cabin load cell UC-AP parameters:
| Model | UC-AP | UC-AP-B | UC-AP-C |
| Rated Load | 800kg | 800kg | 800kg |
| Rated Output | 2.0+-0.02%mv/v | 2.0+-0.02%mv/v | 2.0+-0.02%mv/v |
| Total error | +/-0.5% F.S | +/-0.5% F.S | +/-0.5% F.S |
| Repeatability | +/-0.5% F.S. | +/-0.5% F.S. | +/-0.5% F.S. |
| Creep 30min | +/-0.05% F.S/30min | +/-0.05% F.S/30min | +/-0.05% F.S/30min |
| Zero Balance | +/-1% F.S. | +/-1% F.S. | +/-1% F.S. |
| T C SPAN | +/-0.02% F.S./10 degree Celsius | +/-0.02% F.S./10 degree Celsius | +/-0.02% F.S./10 degree Celsius |
| Operation temperature range | -30 to 70 degree Celsius | -30 to 70 degree Celsius | -30 to 70 degree Celsius |
| Input Resistance | 1030+/-10 ohm | 1030+/-10 ohm | 1030+/-10 ohm |
| Output Resistance | 1000M+/-2 ohm | 1000M+/-2 ohm | 1000M+/-2 ohm |
| Safe Overload | 150% F.S. | 150% F.S. | 150% F.S. |
| Ultimate Overload | 200% F.S. | 200% F.S. | 200% F.S. |
| Construction | Aerometal | Aerometal | Aerometal |
| Protection Class | IP68 | IP68 | IP68 |
| Insulation impedance | ≥5000Ω | ≥5000Ω | ≥5000Ω |
| Cable length | 2.5m(black) | 2.5m(grey) | 5m(grey color) |
| Connection type | USB interface | Terminal Plug | Terminal plug |
Elevator cabin load cell UC-AP Size:
Installation and wiring diagram:
Installation postion: under the wire rope hitch plate
For traction elevator lifts, We SUMMIT provide a wide range of elevator load weighing device and strain load cells and it can suit different installation position requests, and usually there are 4 ways to mount it:
Broad selections, We offer you flexible, modular solutions for both requirements, and wide experience with modernization projects.
1.Under elevator cabin (cab load cells UC-AP, UC-H)
2.Clamped on the wire rope (wire rope load cells RH-SM,RH-A100)
3.Between the wire rope hitch plate such as RHP-E, RHP-F, RHP-G and so on. the customized load cells are available on requests(rope hitch compression load cells)
4.Mounted on the elevator car frame to detect the beam deformation (tension link load cell, cross head load cell RHP-X)
