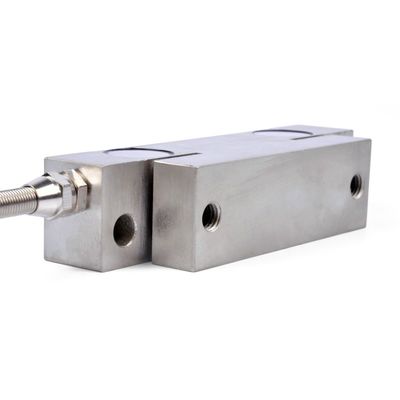

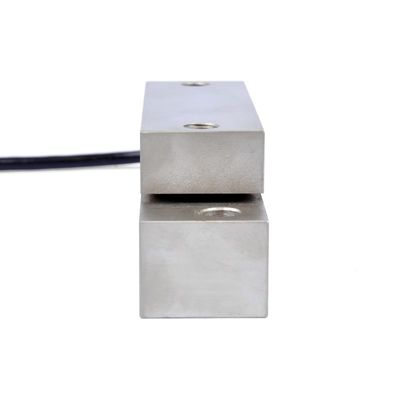

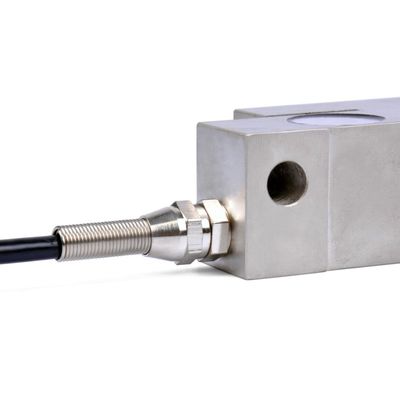

SUMMIT ANT RHP-E Elevator Load Cell 3000kg 5000kg Lift Compression Load Cell
| Place of Origin | NINGBO CITY CHINA |
|---|---|
| Brand Name | SUMT, ANT |
| Certification | CE |
| Model Number | RHP-E |
| Minimum Order Quantity | MOQ:10pcs |
| Price | USD35-60/set |
| Packaging Details | Box+carton, 38X26X32cm/carton, G.W.:20kg/carton. |
| Delivery Time | 3-20 working days depending on the quantity |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Elevator Compression Load Cell | Rated Load | 3000kg |
|---|---|---|---|
| Cable Length | 8M (load Cell) | Installation Position | Under Wire Rope Hitch Plate |
| Material | Stainless Steel | Size | 150X35X48mm |
| High Light | SUMMIT ANT RHP-E Elevator Load Cell,Elevator Load Cell 3000k,5000kg Lift Compression Load Cell |
||
Product Description

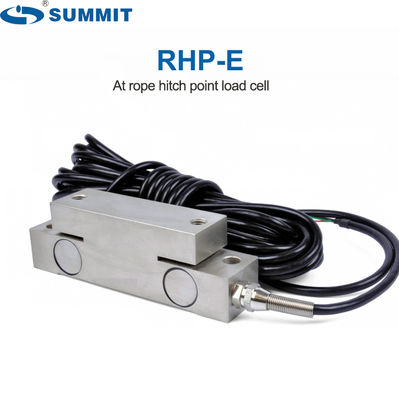

SUMMIT ANT RHP-E Nominal load 3000kg 5000kg mounted under rope end hitch plate elevator lift compression load cell
Description:
The compression load sensor RHP-E is made of high nickel alloy steel & designed particularly to measure the elevator lift car loading whether the elevator car’s weight is overloaded or not, thereby to ensure the safe operation of the elevator ,and it is typically placed at the position of rope attachment and between the wire rope hitch plates and provide more accuracy measurement.
Features:
- Load cell especially designed to work a compression.
- Made of alloy steel of high resistance with anti-corrosion treatment.
- Particularly installed under the wire rope hitch plate
- Connected to load control unit OMS series by SUMMIT
| Model:Elevator compression Load Cell RHP-E-3T | |||
| Rated Load | 3000KG | Construction material | Alloy Steel |
| Sensitivity | 2.0+-0.02%mv/v | Operation temperature range | -30 to 70 degree Celsius |
| Total error | +/-0.5% F.S | Input Resistance | 760+/-10 ohm |
| Excitation | 5-12V DC | Output Resistance | 700+/-2 ohm |
| Max excitation | DC15V | Safe Overload | 150% F.S. |
| Insulation Impedance | ≥5000 Ohm | Ultimate Overload | 200% F.S. |
| T C SPAN | +/-0.02% F.S./10 degree Celsius | Voltage Creep Error | +/-0.02% F.S |
| Protection class | IP67 | Cable length | 8m |
Compression load cell RHP-E Size:
Installation and wiring diagram:
Installation postion: under the wire rope hitch plate
For traction elevator lifts, We SUMMIT provide a wide range of elevator load weighing device and strain load cells and it can suit different installation position requests, and usually there are 4 ways to mount it:
Broad selections, We offer you flexible, modular solutions for both requirements, and wide experience with modernization projects.
1.Under elevator cabin (cab load cells UC-AP, UC-H)
2.Clamped on the wire rope (wire rope load cells RH-SM,RH-A100)
3.Between the wire rope hitch plate such as RHP-E, RHP-F, RHP-G and so on. the customized load cells are available on requests(rope hitch compression load cells)
4.Mounted on the elevator car frame to detect the beam deformation (tension link load cell, cross head load cell RHP-X)
