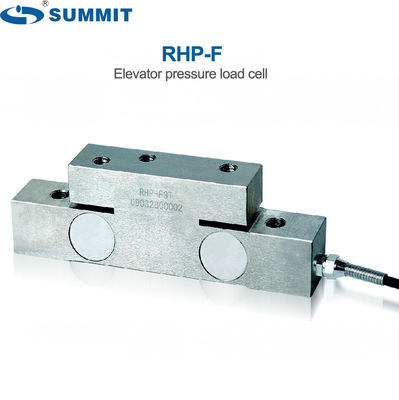

ANT RHP-F Elevator Load Cell 1000Kg 3000kg Elevator Pressure Load Cell

  • ANT RHP-F Elevator Load Cell 1000Kg 3000kg Elevator Pressure Load Cell
Place of Origin NINGBO CITY CHINA
Brand Name SUMT, ANT
Certification CE
Model Number RHP-F
Minimum Order Quantity MOQ:10pcs
Price USD35-60/set
Packaging Details Box+carton, 38X26X32cm/carton, G.W.:20kg/carton.
Delivery Time 3-20 working days depending on the quantity
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 5000-10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Elevator Compression Transducer Rated Load 3000kg
Cable Length 8M (load Cell) Installation Position Under Wire Rope Hitch Plate
High Light

ANT RHP-F Elevator Load Cell

,

Elevator Load Cell 1000Kg

,

3000kg Elevator Pressure Load Cell
Leave a Message
Product Description

ANT accurate RHP-F rated load 1000g 3000kg elevator lift load weighing compression transducer mounting at rope attachments



Description:
The compression load sensor RHP-F is made of high nickel alloy steel & designed particularly to measure the elevator lift car loading whether the elevator car’s weight is overloaded or not, thereby to ensure the safe operation of the elevator ,and it is typically placed at the position of rope attachment and between the wire rope hitch plates and provide more accuracy measurement.



Features:

  1. Load cell especially designed to work a compression.
  2. Made of alloy steel of high resistance with anti-corrosion treatment.
  3. Particularly installed under the wire rope hitch plate
  4. Connected to load control unit OMS series by SUMMIT
Model:Elevator compression Load Cell RHP-F-3T
Rated Load 3000KG Construction material Alloy Steel
Sensitivity 2.0+-0.02%mv/v Operation temperature range -30 to 70 degree Celsius
Total error +/-0.5% F.S Input Resistance 760+/-10 ohm
Excitation 5-12V DC Output Resistance 700+/-2 ohm
Max excitation DC15V Safe Overload 150% F.S.
Insulation Impedance ≥5000 Ohm Ultimate Overload 200% F.S.
T C SPAN +/-0.02% F.S./10 degree Celsius Voltage Creep Error +/-0.02% F.S
Protection class IP67 Cable length 8m
Size: 150x24x48mm



Compression load cell RHP-E Size:

ANT RHP-F Elevator Load Cell 1000Kg 3000kg Elevator Pressure Load Cell 0



Installation and wiring diagram:

ANT RHP-F Elevator Load Cell 1000Kg 3000kg Elevator Pressure Load Cell 1

                                               Installation postion: under the wire rope hitch plate

ANT RHP-F Elevator Load Cell 1000Kg 3000kg Elevator Pressure Load Cell 2

ANT RHP-F Elevator Load Cell 1000Kg 3000kg Elevator Pressure Load Cell 3

ANT RHP-F Elevator Load Cell 1000Kg 3000kg Elevator Pressure Load Cell 4

For traction elevator lifts, We SUMMIT provide a wide range of elevator load weighing device and strain load cells and it can suit different installation position requests, and usually there are 4 ways to mount it:

Broad selections, We offer you flexible, modular solutions for both requirements, and wide experience with modernization projects.
1.Under elevator cabin (cab load cells UC-AP, UC-H)
2.Clamped on the wire rope (wire rope load cells RH-SM,RH-A100)
3.Between the wire rope hitch plate such as RHP-E, RHP-F, RHP-G and so on. the customized load cells are available on requests(rope hitch compression load cells)
4.Mounted on the elevator car frame to detect the beam deformation (tension link load cell, cross head load cell RHP-X)



Your trustworthy partner-SUMMIT
With more than 20 years experience in the elevator and lifting industry and with our highly qualified and dedicated staffs, we can provide you the best possible sensor and weight measuring solutions in all types ofinstallations. SUMMIT ensures safety and quality at all steps of elevator and lifting. Long -standing expertise, all encompassing technology competencies, consulting and supported by qualified experts as a highly  professional customer service--We trust SUMMIT is your trustworthy partner you can rely on.

ANT RHP-F Elevator Load Cell 1000Kg 3000kg Elevator Pressure Load Cell 5
