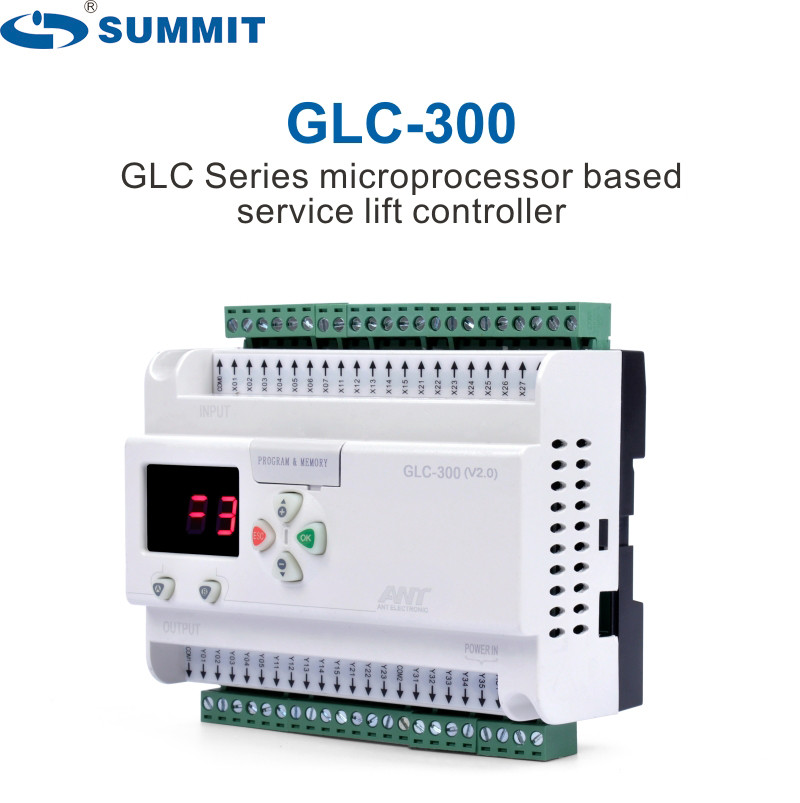

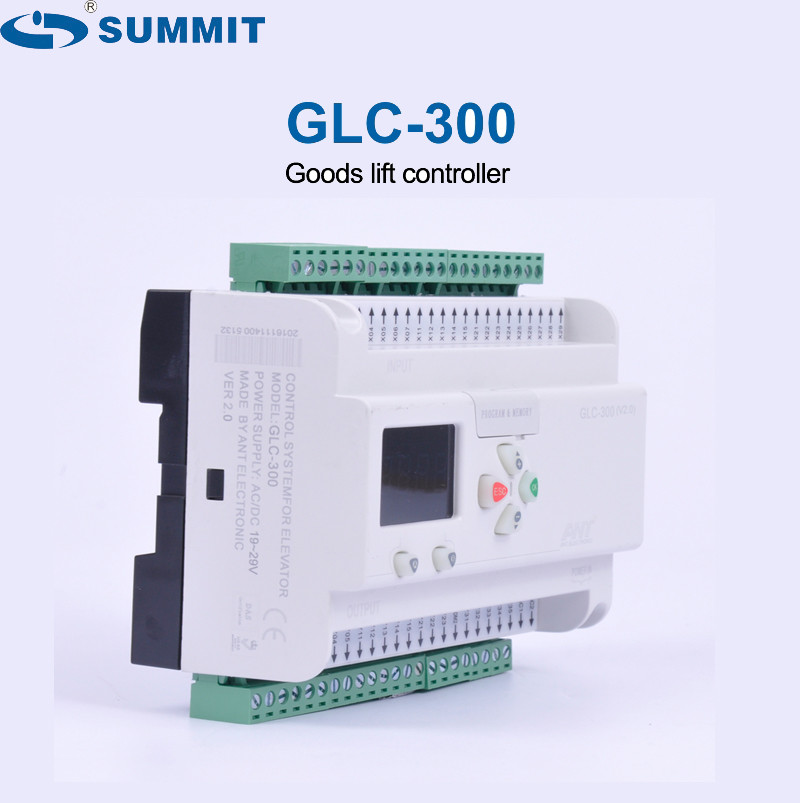

ANT Elevator Systems Controller DC24V Single Speed Lift Controller Dumbwaiter Controller
| Place of Origin | NINGBO, CHINA |
|---|---|
| Brand Name | SUMT, ANT |
| Certification | CE |
| Model Number | GLC-300-24V |
| Minimum Order Quantity | MOQ:50pcs |
| Price | USD100-140/PC |
| Packaging Details | Box+carton, 50pcs/Carton, 10kg/carton, carton size: 38X25X32cm |
| Delivery Time | 3-20 working days depending on the quantity |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Goods Lift Controller | Voltage | DC18-65V |
|---|---|---|---|
| Floor Range | Applicable To 2-5 Floors | Application | Particuarlly For Goods Lift /dumbwaiter |
| Display | 4 Digits,0.56inch LED | Material | Flame Atardent ABS |
| High Light | ANT Elevator Systems Controller DC24V,DC24V Single Speed Lift Controller,GLC-300-24V Dumbwaiter Controller |
||
Product Description
ANT GLC-300 DC24V parellel communication sigle speed service goods lift controller PLC for 2-5 floors lift
Description:
The controller GLC-300 is designed for the goods lift or dumbwaiter, and it is very popular because of its high cost performance and easy operation, and have powerful function.
Main Features:
1. Maintenance function
2. Auto-learning floor
3. Monitoring main operations output contactor
4. Monitoring the dead-locking of the car
5. Overload protection
6. Monitoring interlocking door
7. Reminding of emergency stop button
8. Reminding of recall signal
9. Upgrading of in-circuit programming system software
10.applicalble for 5 floors(it is available to customize for up 6 sotories
11. Floor leveling switch detection
12. Phase sequence, over and lower voltage protection.
Goods lift GLC-300 Parameters
| Controller PLC : GLC-300 | |
| Product Type | Miscellaneous lift controller |
| Operating Voltage | AC DC 24V/65-285V |
| Nominal Frequency | 50/60Hz |
| Nominal Power | <=10W |
| Display Mode | Decimal Code / BCD code |
| Floor Range | 2-5 Floors |
| Code display | 4 Digital Display |
| Input From | Photoelectric isolation , open-drain input |
| Digital Signal Filtering Delay | 30ms |
| Output mode | The reply on-off outputting |
| Contact Mechanical Capacity | 8A/250V AC , 3A/24V DC |
| Material | Flame retardant ABS |
| Temperature Range | -20~60 C |
| Protection Level | IP 45 |
| Products model | GLC-300 |
The Dumbwatier controller GLC-300 size:
Broad selection: Elevator load weiging control unit parameters data sheet
| Model | OMS-560 | OMS-520 | OMS-820 | OMS-830 | OMS-860 |
| Load cell number | 2 | 1 | 2 | 2 | 2 |
| Overload | 2NO/1NC | 1NO/1NC | 1NO/1NC | 1NO/1NC | 1NO/1NC |
| Full load | 1NO/NC | 1NO/NC | 1NO/NC | 1NO/NC | 1NO/NC |
| Half load | / | 1NO/NC | 1NO/NC | 1NO/NC | 1NO/NC |
| Light load | 1NO/NC | 1NO/NC | 1NO/NC | 1NO/NC | 1NO/NC |
| Display mode | 4digits 0.56inch | ||||
| Signal hold | 12-240V | ||||
| Floor compensation | / | Y | / | / | / |
| Voltage analog output | / | Y | Y | Y | / |
| Current analog output | / | optional | optional | optional | / |
| Canbus | / | / | / | / | Yes |
| Operation voltage | AC/DC18-48V | AC/DC18-48V | AC/DC18-48V | AC220V | AC/DC220V |
| Specialty |
Optical& acoustic control relay |
/ | rope loose | rope loose, 15kg output | rope loose |
Instruction:We, SUMMIT, as a leading elevator components company in China, provide a simple yet powerful range of load weighing control instrumentation. They work with a wide range of load sensor produced by us and can be easily configured using our straightforward, step by step, set up procedure. Calibration is simple and can be achieved with no weight, known weight or full load weight and so on.
