500kg RH-SM Wire Rope Load Cell Dia8-10mm Elevator Force Measuring Load Cell
| Place of Origin | NINGBO CITY CHINA |
|---|---|
| Brand Name | SUMT, ANT |
| Certification | CE |
| Model Number | RH-SM |
| Minimum Order Quantity | MOQ:20pcs |
| Price | USD35-60/set |
| Packaging Details | Box+carton, 38X26X32cm/carton, G.W.:6kg/carton. |
| Delivery Time | 3-20 working days depending on the quantity |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tension Transducer/rope Load Cell | Rated Vertical Compression Load | 500kg/each Rope |
|---|---|---|---|
| Lifting Capactiy | 1000kg(depending On The Roping) | Cable Length | 3M (load Cell) |
| Installation Mode | Clamp On The Wire Rope | Wire Rope Dia | Applicable To 8-10mm |
| High Light | 500kg RH-SM Wire Rope Load Cell,RH-SM mmWire Rope Load Cell Dia8,10mm Elevator Force Measuring Load Cell |
||
Product Description

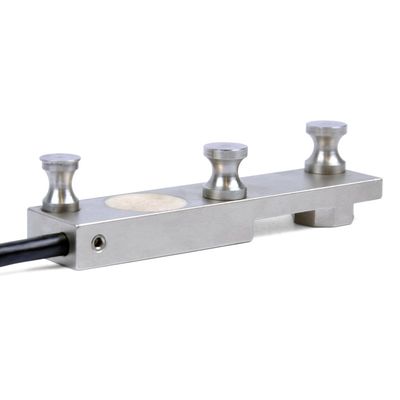

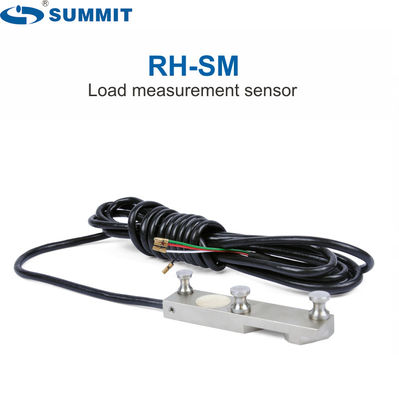

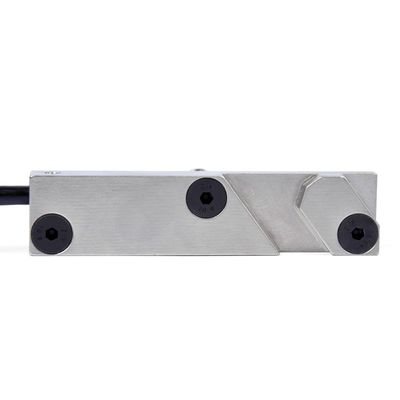

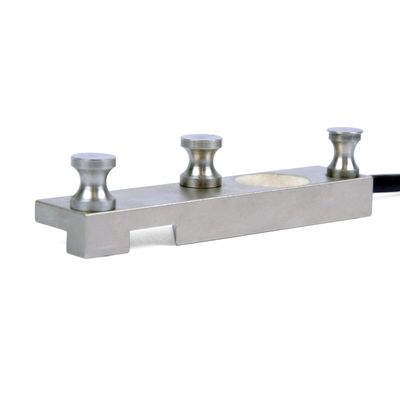

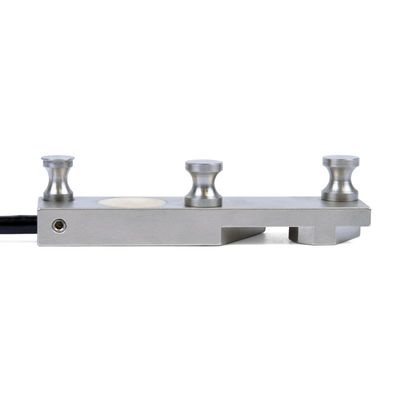

SUMMIT ANT 500kg RH-SM clamp on wire rope dia8-10mm force tension measuring load cell for home lift /villa elevator
Description:
The sensor RH-SM has been developed to measure the weight in home elevators or villa elevator, as well to control the force in each cables in an
independent way. It doesn't produce frictions neither displacements along the cable. and A miniaturized design for easy and fast installation.Their placement is suitable whatever the distance of the cables. Ideal to place in those cables with excessive seperations.
Feature:
- galvanized steel wire (surface preparation, surface treatment:galvanized)
- Reliable and economical
- Stainless steel construction galvanized
- Quick and easy installation
- Easy to mount directly on fixed point of cable (dead end)
- IP67 protection class
- Specially designed for retrofitting in existing home lift/villa elevator
- A wide range of associated products: weighing control unit to constitute a whole elevator load weighing device
| Wire rope tension sensor : RH-SM | |||
| Rated load | 500kg | Ultimate overload | 200% F.S |
| Wire rope diameter | 8-10mm | Total error | ±0.5%F.S |
| Sensitivity | 2.0±0.02%mV/V | Material | Alloy Stell |
| Excitation voltage | 5-12VDC | Cable Length | 3m |
| Input impeance | 760±10Ω | Creep error | ±0.02% F.S. |
| Output impedance | 700±2Ω | TC SPAN | ±0.02%F.S/10℃ |
| Insulation impedance | ≥5000MΩ | Working temperature | -30℃~+70℃ |
| Safe overload ratio | 150%F.S | Protection class | IP67/IP68 |
Size:
| Model | Suitable Rope Dia | Rated load: | lifting capacity of each wire rope | L(cm) | H (cm) | B (cm) |
| RH-SM | ȼ8-10mm | 500kg | 1000kg | 87 | 10 | 20 |
Installation diagram
Wiring Digram sktech
We SUMMIT has been providing versatile load-limitation systems for all types of cranes and especially overhead cranes. In particular, we have supplied them to the very important players in the lifting and material handling industry as well as in steel industry. That is why we can claim that we have a solid experience and are highly dependable as regards load-limiting devices for cranes which enables us to equip the most complex of systems.
We offers a very wide range of overload limiter and applicable to versatile lifting industry application:
- Load cells and load pins (from 1000 kg up to 10T, higher capacity on request) such as Split type overload limit switch: OMS-370C+CRN-GX, OMS-350+CRN+GX and so on.
- clamp on wire rope load limiter:SUMT-QZX(A), OMS-370C+RH-EC, OMS-370C+RH-BC and so on
- Geared limit switch(worm rod lift switch)
- tension link load limiter
- Load limiters with analogue or digital outputs;
Module design and easy and free combination to suit different installation demand.
Solutions to meet your integrated needs
Application:
Overload limiter prevent accidents occurring due to the raised load dangerously exceeding the normal value as established by the manufacturer or by the user of the lifting device. It makes a vital contribution to the safety of operatives.
A comprehensive kit for crane/hoist overload protection that includes everything needed to install or retrofit on bridge cranes is now available from SUMMIT load weighing Systems.
