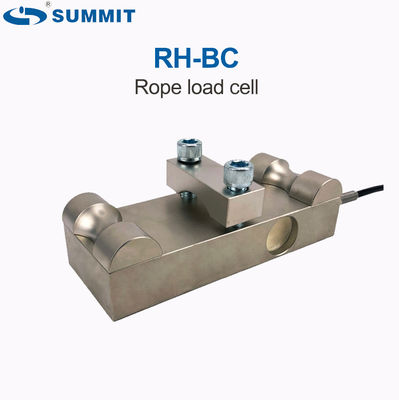

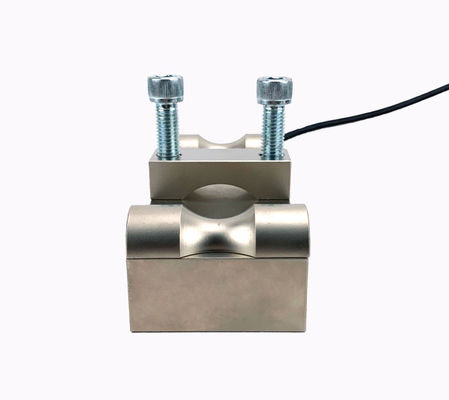

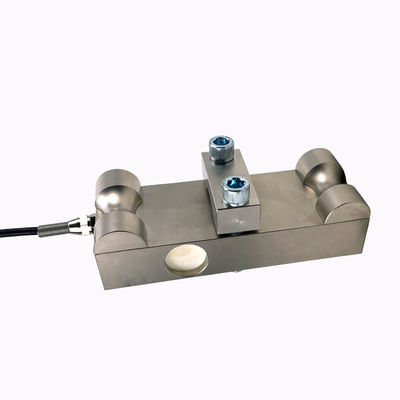

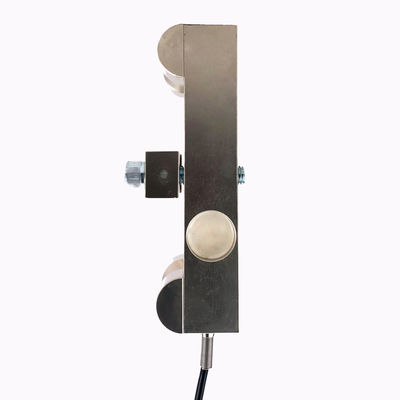

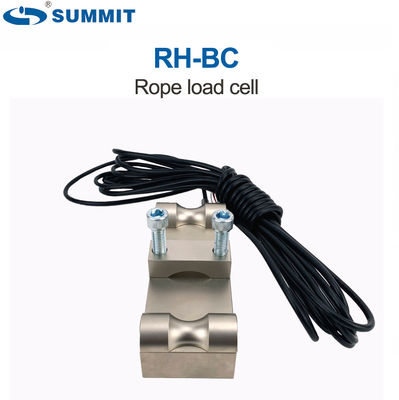

SUMMIT RH-BC Wire Rope Load Cell 12-22mm Overload Protection Rope Tension Load Cell

SUMMIT ANT RH-BC Wire rope diameter 12-26mm Rated load 5000kg 10T crane overlad protection clamp on wire rope Load Cell

Description

The clamped on wire rope load cell RH-BC series is a low cost load cell specially designed to measure the tension force on hoisting and crane rope. Easy installation does not require the hoist to be dismantled nor modified, and the rope load cell RH-BC series clamped on cable load sensor covers a large range of cables max up to 36 mm in diameter and loads of 5000kg to 10000kg (under the condition of roping:1:), depending on the rope reeving falls. Together with a weighing controller (OMS-370C, SUMT-QZX(B)) and a digital display scoreboard, this cable clamped load Sensors constitute a complete measuring system for visualizing and continuously monitoring loads and detecting overloads

Application:

The wire rope load cell sensor is recommended for measuring load and overload to ensure the safety of industrial lifting installations, overhead cranes, winches and hoists. It is perfectly suitable for implementation on existing lifting systems in order to upgrade in compliance with actual safety standards without heavy modification. It is recommend to be used with a control unit (OMS-370C, OMS-350,OMS-160) easily coupled with a digital display scoreboard with 9 digits or 6digitals(red colour)

Feature:

1. galvanized steel wire (surface preparation, surface treatment:galvanized)
2. Reliable and economical
3. Stainless steel construction galvanized
4. Quick and easy installation
5. Easy to mount directly on fixed point of cable (dead point)
6. IP67 protection class
7. Specially designed for retrofitting in existing crane equipment
8. A wide range of associated products: weighing control unit, LED digital display

Size:

Installation diagram

Wiring Digram sktech

        Rope load cell RH-BC       Control unit OMS-370C    LED display scoreboard(6digits)

We SUMMIT has been providing versatile load-limitation systems for all types of cranes and especially overhead cranes. In particular, we have supplied them to the very important players in the lifting and material handling industry as well as in steel industry. That is why we can claim that we have a solid experience and are highly dependable as regards load-limiting devices for cranes which enables us to equip the most complex of systems.

We offers a very wide range of overload limiter and applicable to versatile lifting industry application:

- Load cells and load pins (from 1000 kg up to 10T, higher capacity on request) such as Split type overload limit switch: OMS-370C+CRN-GX, OMS-350+CRN+GX and so on.

- clamp on wire rope load limiter:SUMT-QZX(A), OMS-370C+RH-EC, OMS-370C+RH-BC and so on

- Cross head limit switch

- Geared limit switch(worm rod lift switch)

- tension link load limiter

- Load limiters with analogue or digital outputs;

Module design and easy and free combination to suit different installation demand.

Solutions to meet your integrated needs

Application:

Overload limiter prevent accidents occurring due to the raised load dangerously exceeding the normal value as established by the manufacturer or by the user of the lifting device. It makes a vital contribution to the safety of operatives.

A comprehensive kit for crane/hoist overload protection that includes everything needed to install or retrofit on bridge cranes is now available from SUMMIT load weighing Systems.
