Telecontrol EF24-12D Industrial Wireless Remote Control Used For Hazardous Area

Telecontrol EF24-12D flame-proof industrial wireless remote control used for harzadous area and explosion-risk area:

Explosion industrial remote control EF24 series:

With increasing demand in the hazardous areas, Telecontrol’s product portfolio for explosion-proof safety radio remote controls is also growing. These flame-proof radio remote controls correspond to the highest safety requirements and can be used in gas explosion zones 1 and 2. This makes it the perfect transmitter for offshore applications and for example on oil platforms. The Telecontrol EX explosion proof radio remote control push button transmitter have been designed and certified to work in environments with the risk of explosion. These explosion proof radio remote controls correspond to the highest safety requirements, and the Radio remote control systems Comply with GB in China, and it is ideal for controlling any industrial application in an area with explosion risks, such as petrochemical, oil field ,oil refining, paint factory, heavy industry, chemicals, pharmar, marine and offshore environments and so on.

The explosion proof transmitter is available with both 6 or 12 push button in single speed or dual speeds, the transmitter with removable magnetic key as standard and start button The the transmitter enclosure shell is of anti-static material, and adding anti-static agent, and the maximum enhancement in the anti-static grade products, and particularly designed for operations in hazardous environment where explosive gases / vapors are present

Flame-proof radio remote control classical applications:

Typical applications: It can be widely used in offshore oil field, oil tankers, onshore oilfield, chemical industry, oil refinery, coal mines, paint factory,mine and aircraft maintenance factory.

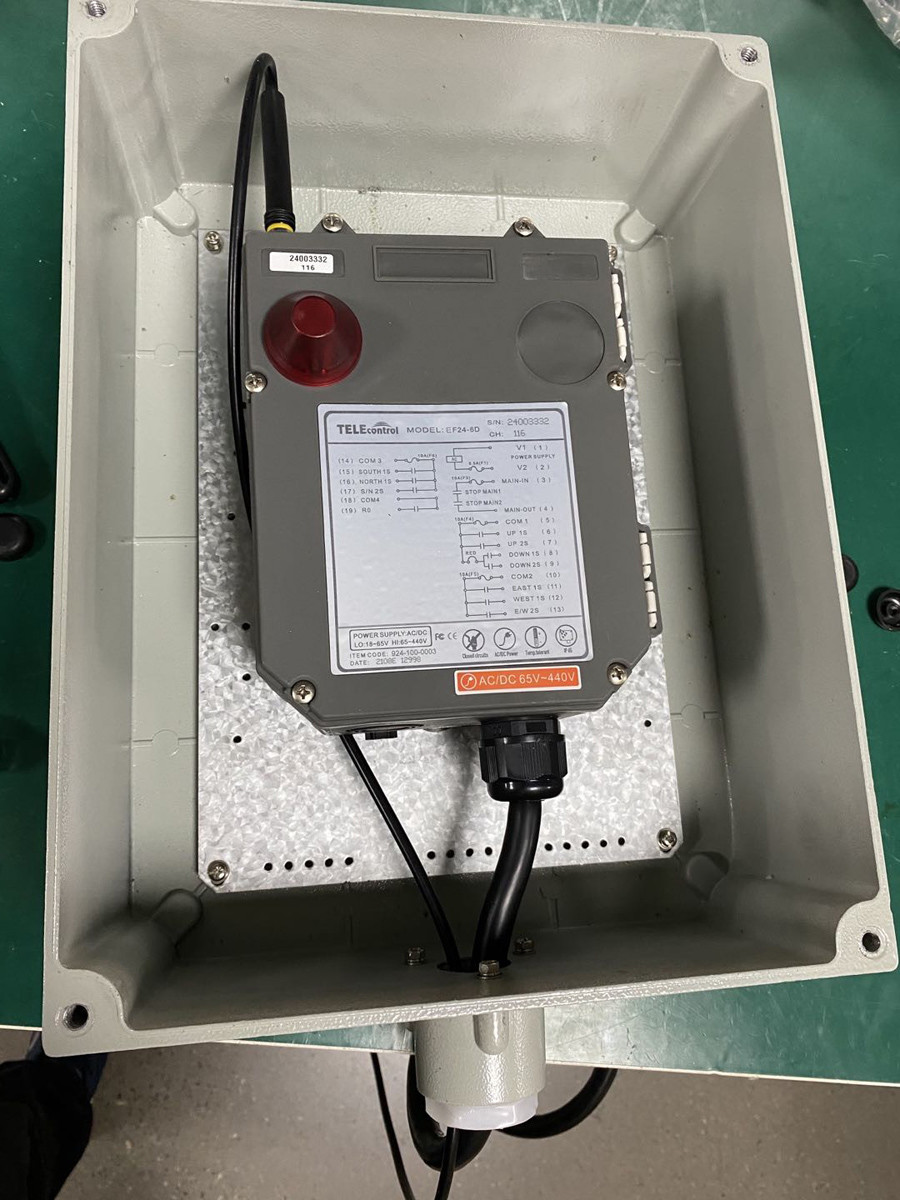

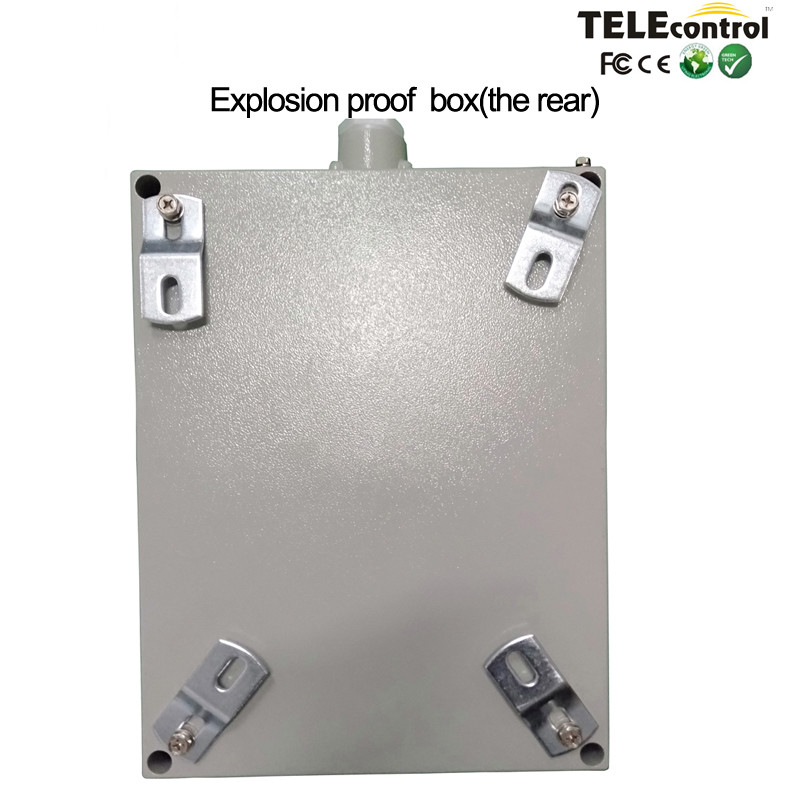

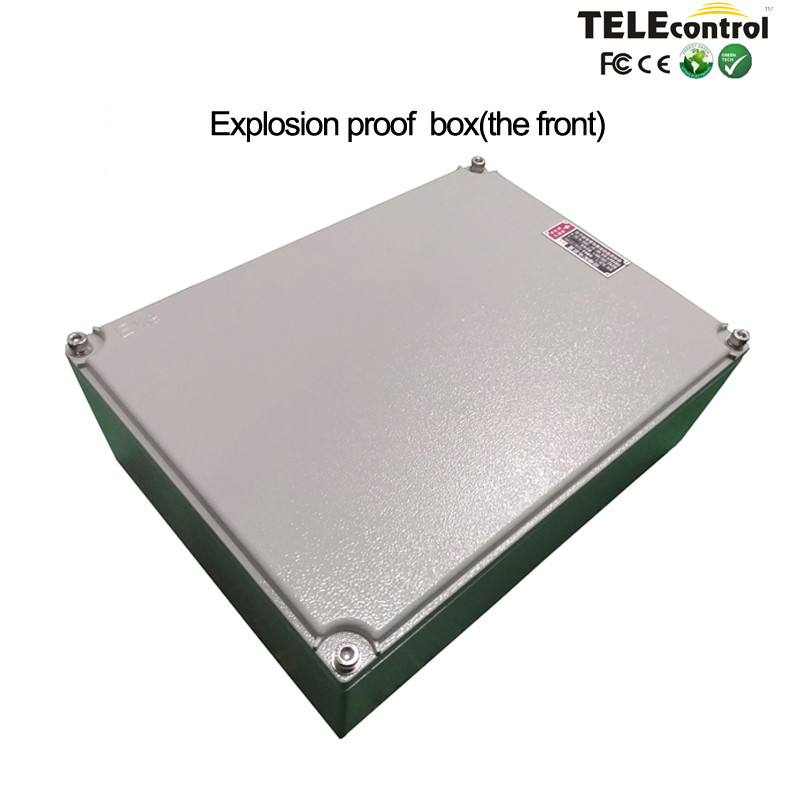

The wireless radio remote control systems receiver box, which is optional, is a specifically designed flame-proof enclosure or as a standard receiver (without EX certification) for fitting in own suitable enclosure or placed outside explosion-risk area.

Features:

1. 12 Push buttons in dual speed,1 EMS,  1 rotary magnetic switch, and1 start button
2. Program the button function by computer interface(software and cable is optional)
3. Glass-fiber PA for extra shock resistanc,and of antistatic material, and adding antistatic agent, the maximum enhancement in the anti-static grade products. .
4. Dual independent power supply: AC/DC24-48V/65-440V, and DC12V can be customized.
5. Operating distance up to 100 meters, extendable with extra antenna
6. High level Enclosure protection class IP 65
7. Temperature range – 40 ° C~ + 85° C
8. Transmitter with working power led indicator
9. Transmitter with housing for extra shock resistance and shoulder strap cord
10. Low cost for electronic chain, hoist/monorail
11. Standard AA alkaline batteries(not included)
12. Low power consumption transmitter. 2 AA batteries last up to 4 months
13. Over 4.3 billions unique ID code available
14. Hamming code
15. Enhanced watch-dog circuit
16. Microsoft Windows based software for easy customize configuration
17. Test certificate of every single product with FCC and CE certificate

Note:
An industrial wireless radio remote control system can consist of any number of remote control transmitters and wireless relay receivers working together. Multi channel units provide the flexibility for numerous functions and user selectable network. Thanks for the strong production capacity and a professional team of sophisticated engineers, it gave us the flexibility to customize our systems to meet your needs directly. We carefully listen to your application description and will specify the most cost-effective models from our product line to suit the requirements. We can even add hardware to provide a totally “turn-key” solution.

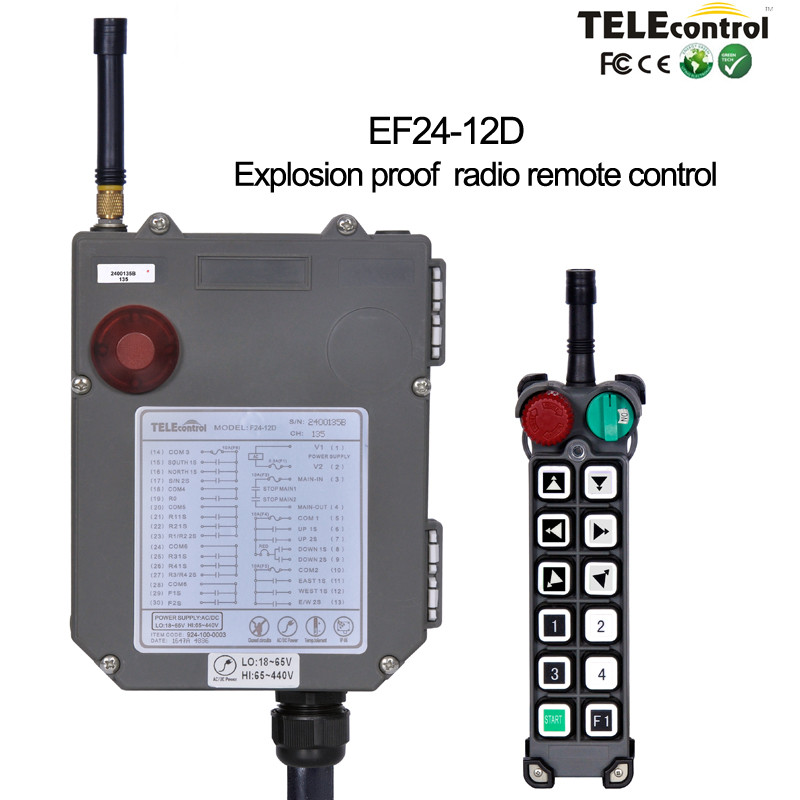

                   Explosion proof wireless radio remote control F24-12D: 1TX+1RX( 11 dual speed pushbuttons)

Technical Parameters:

Explosion proof industrial radio Remote Control EF24-12D Wiring Diagram(Pre-wiring standard cable):

A wide spectrum of items for Lifting  industries, automation and material handing applications:

We offer a wide range of portfolio expect the industrial wireless radio remote controls,and also manufacturer the crane overload  limiter, crosshead limit switch, phase sequence voltage monitoring relay for crane and other lifting devices protection and saftey control and a variety of options:

FAQ:
Q:Do you hav any requests for the MOQ?
A:Infact, there is no requests for the MOQ, and It is available to order 1set,and small order or trial order is welcome too, and there is only MOQ for the customized items.

Q:How about your delivery time?
A:All the standard remote controls are ready for shipment from the warehouse, it could be delivered immediately after the payment. For large quantity or the customized radio wireless remote controls, please contact us for specific lead time.

Q:How about payment?
A:It is usually paid by bank transfer(T/T in advance), if the amount is not large, it is available to pay it by Paypal, Western union and so on.

Q:How about your industrial remote controls warranty?

A:the remote controls is warranted against defects in material and
manufacturing for a period of one year from the date of shipment. During the warranty period, UTING is responsible for necessary repairs as
long as the product can be proven to be defective. For warranty service or repair this product must be returned to the factory. Buyer will pay shipping charges while UTING will pay return shipping charges. This warranty does not include consumable parts such as batteries, fuses, buttons, relays. Also this warranty does not cover defects caused by improper installation, improper or insufficient maintenance, unauthorized modification, improper operation, ignorance of environmental specifications, or improper software or interfacing.

For more information, please contact us freely by email:uting3e@foxmail.com, or call us directly cell phone(wechat/whatsapp):+86-13123881718
