FCC CE Handheld Overhead Crane Wireless Remote Control F26-C2 Eot Crane Radio Remote
Place of Origin | NINGBO CITY, CHINA |
---|---|
Brand Name | TELECONTROL UTING |
Certification | CE FCC |
Model Number | F26-C2 |
Minimum Order Quantity | MOQ:12pcs |
Price | Negotiable |
Packaging Details | Box+carton,12pcs/carton, 24kg/carton, carton size: 66X43X52cm |
Delivery Time | 1-4 weeks depending on the quantity |
Payment Terms | T/T, Western Union, MoneyGram,Paypal |
Supply Ability | 1000-5000pcs/month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Industrial Crane Remote Control | Voltage | AC/DC18-440V |
---|---|---|---|
Frequency | UHF(420.2-430) VHF | Material | Fiber Glass Nylon |
Operation Range | 80-100m | Stand Specification | 1TX+1RX |
High Light | FCC Handheld Eot Crane Radio Remote,Overhead Crane Wireless Remote Control F26-C2,F26-C2 Eot Crane Radio Remote |
Telecontrol FCC and CE certificated F26-C2 Telecrane Handeld type overhead crane wireless radio remote control
UTING offers a wide range of Radio Remote Control system solutions for cranes, locomotives, material handling equipment, mining machinery, mobile equipment, shiploaders, agricultural machinery, and virtually any equipment where the operator can be moved to a safer, more efficient location.
Our radio Remotes controls are your professional partner for every application. We offer not just remote radio control for individuals; we also supply customer-specific remote controls and receivers and we develop OEM-solutions for manufacturers.
Features:
- Economical, Reliable and Durable
- 4 dual speed pushbuttons and 2 single speed buttons, 1 EMS “STOP” button and 1 start button
- Program the button function by computer interface(software and cable is optional)
- Glass-fiber PA for extra shock resistance.
- Double switching power supply design, and the high voltage or low voltage could be changed freely according to need ,and it is more stable and efficient
- Wide working voltage input: AC/DC 18-65V or AC/DC 65-440V (depending on clients’ need), 12VDC is available
- Operating distance up to 100 meters, extendable with extra antenna
- High level Enclosure protection class IP 65
- Temperature range – 40 ° C~ + 85° C
- Transmitter with working power led indicator
- Transmitter with housing for extra shock resistance and shoulder strap cord
Note:
An industrial wireless radio remote control system can consist of any number of remote control transmitters and wireless relay receivers working together. Multi channel units provide the flexibility for numerous functions and user selectable network. Thanks for the strong production capacity and a professional team of sophisticated engineers, it gave us the flexibility to customize our systems to meet your needs directly. We carefully listen to your application description and will specify the most cost-effective models from our product line to suit the requirements. We can even add hardware to provide a totally “turn-key” solution.

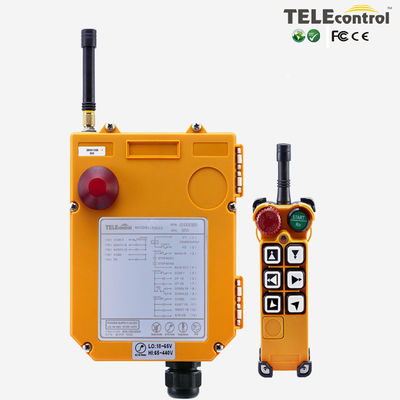

Industrial remote control F26-C2: 1TX+1RX
Technical Parameters:

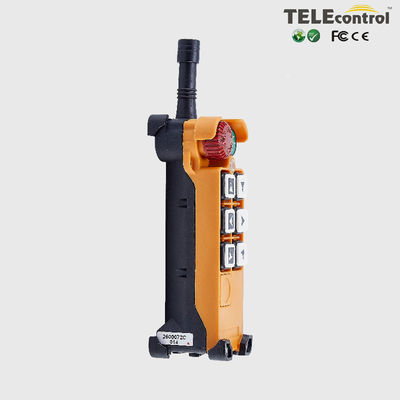

Transmitter parameters:F26-C1 TX | |
Material | Glass-Fiber PA |
Enclosure protection class | IP65 |
Frequency range | VHF:310~331MHz UHF:425-446MHz |
Receiver sensitivity | -110dBm |
Transmitter power supply | 2 AA alkaline batteries(not included) |
Safety Code | 32 bits(4.3billion) |
Temperature range | -30℃~+85℃ |
Control distance | up to 100 meters |

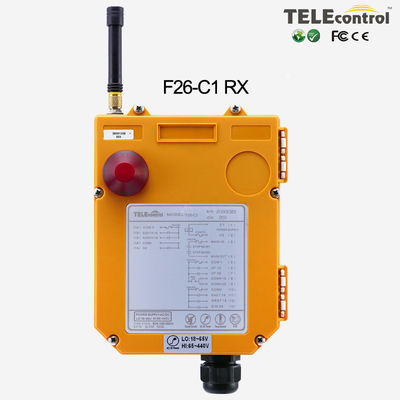

Receiver parameters:F26-C1-RXC | |
Material | Glass-fiber reinforced Nylon |
Enclosure protection class | IP65 |
Frequency range |
VHF:310~331MHz |
Transmitter power | ≤10dBm |
Receiver power supply | AC18-440V |
Output contactor capacity | 250V/20A |
Cable length | 0.65m |
Safety Code | 32 bits(4.3billion) |
Temperature range | -30℃~+85℃ |
Control distance | 30 to 50 meters |
