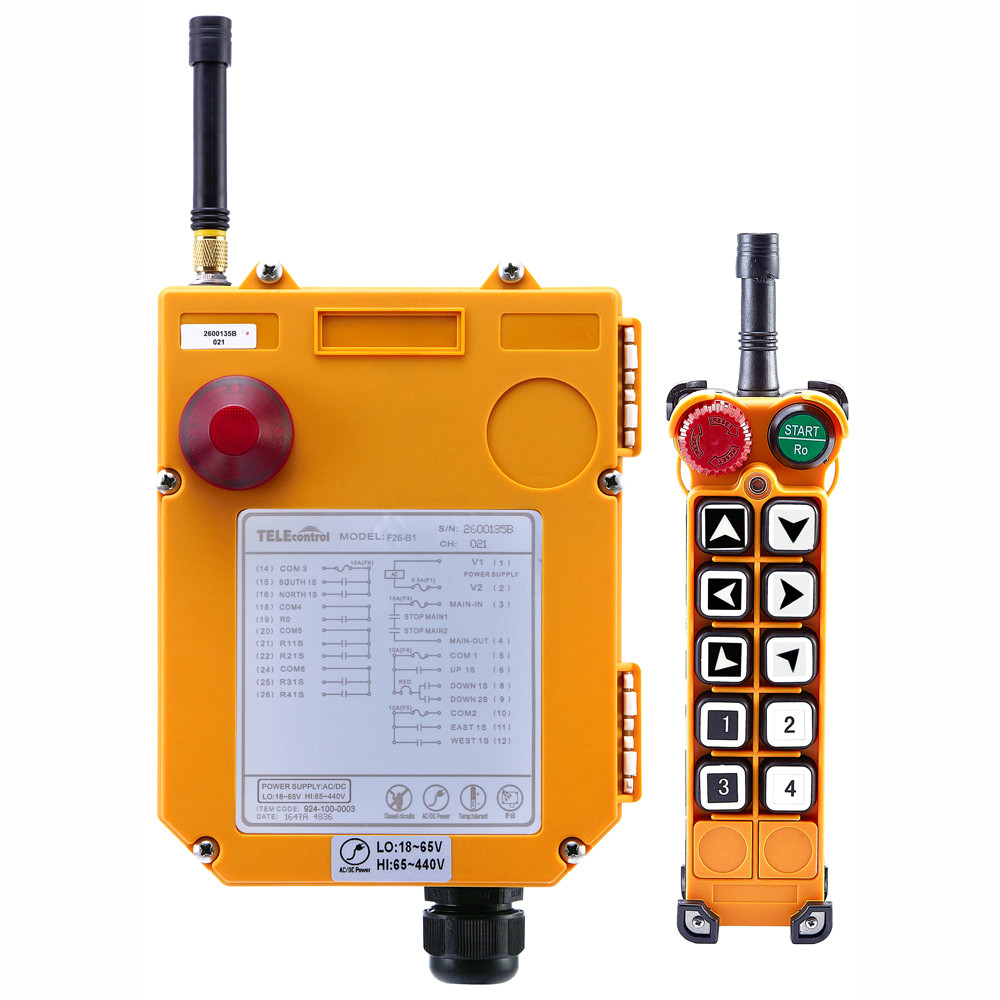

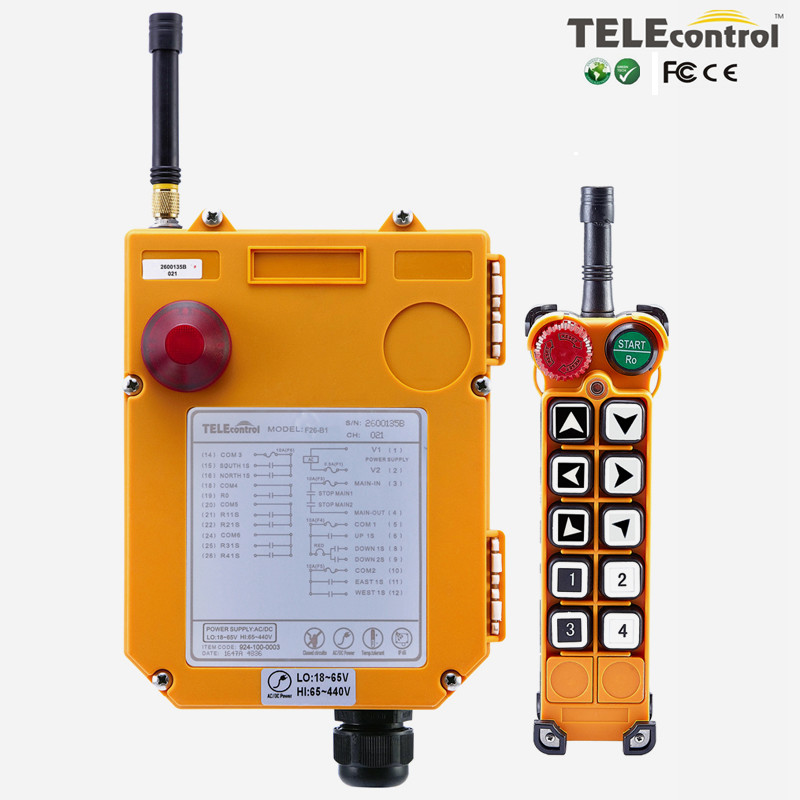

10 Buttons Overhead Crane Remote Control F26-B1 Industrial Radio Remote Control Systems

Telecontrol 10 single speed buttons 5 axis overhead crane & Machinery industrial wireless radio remote control system

UTING offers a wide range of Radio Remote Control system solutions for cranes, locomotives, material handling equipment, mining machinery, mobile equipment, shiploaders, agricultural machinery, and virtually any equipment where the operator can be moved to a safer, more efficient location.
Our radio Remotes controls are your professional partner for every application. We offer not just remote radio control for individuals; we also supply customer-specific remote controls and receivers and we develop OEM-solutions for manufacturers.

Application: MD double-speed electric hoist or double-speed, double-hook/single-speed crane and industrial remote control with 18 contacts or less.

Features:

1. Economical, Reliable and Durable

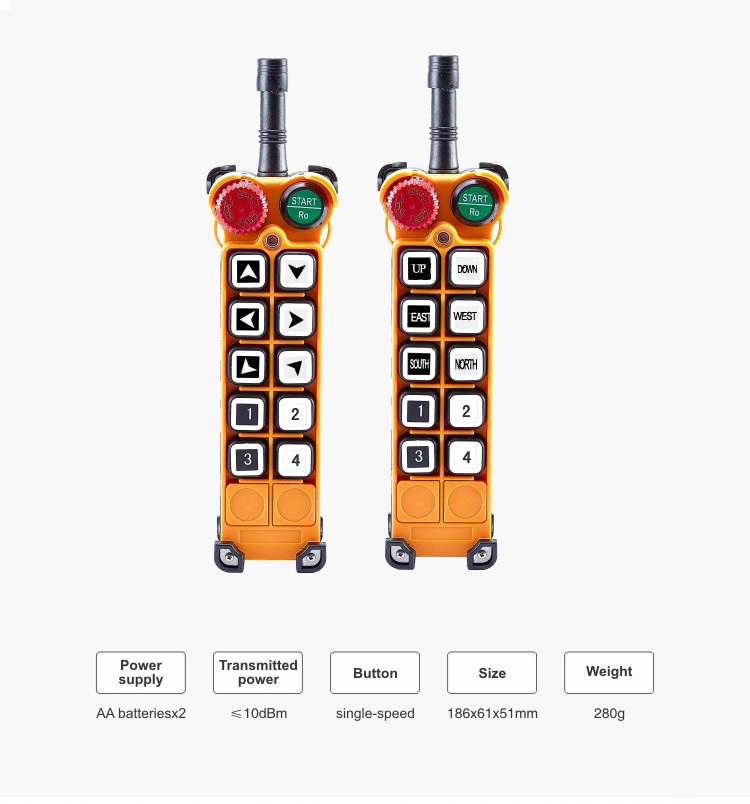

2. 10 one speed push buttons, 1 EMS “STOP” button and 1 start button
3. Program the button function by computer interface(software and cable is optional)
4. Glass-fiber PA for extra shock resistance.
5. Double switching power supply design, and the high voltage or low voltage could be changed freely according to need ,and it is more stable and efficient
6. Wide working voltage input: AC/DC 18-65V or AC/DC 65-440V (depending on clients’ need), 12VDC is available
7. Operating distance up to 100 meters, extendable with extra antenna
8. High level Enclosure protection class IP 65
9. Temperature range – 40 ° C~ + 85° C
10. Transmitter with working power led indicator
11. Transmitter with housing for extra shock resistance and shoulder strap cord
12. With battery voltage warning device, the power supply is cut off during low power
13. Over 4.3 billions unique ID code available
14. Hamming code
15. Enhanced watch-dog circuit
16. The series S/No. and production date are laser making of anti-counterfeit
17. Microsoft Windows based software for easy customize configuration
18. Test certificate of every single product with FCC and CE certificate
19. Custom labeling available

Note:
An industrial wireless radio remote control system can consist of any number of remote control transmitters and wireless relay receivers working together. Multi channel units provide the flexibility for numerous functions and user selectable network. Thanks for the strong production capacity and a professional team of sophisticated engineers, it gave us the flexibility to customize our systems to meet your needs directly. We carefully listen to your application description and will specify the most cost-effective models from our product line to suit the requirements. We can even add hardware to provide a totally “turn-key” solution.

Technical Parameters:
