Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch

  • Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
  • Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
  • Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
  • Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
  • Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Place of Origin NINGBO CITY, CHINA
Brand Name SUMMIT
Certification CE
Model Number F21-2S(WD)
Minimum Order Quantity MOQ:50pcs
Price Negotiable
Packaging Details Box+carton, 12pcs/carton, 11kg/carton, carton size: 38x21.5x32cm
Delivery Time 1-4 weeks depending on the quantity
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 5000-10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Micro Electric Hoist Remote Control Voltage AC110-120V
Speed 1 Steep Motions Up And Down
High Light

Telecrane F21-2S Electric Hoist Remote Control

,

Electric Hoist Remote Control 110V Micro

,

Telecrane F21-2S Winch Remote Control Switch
Leave a Message
Product Description

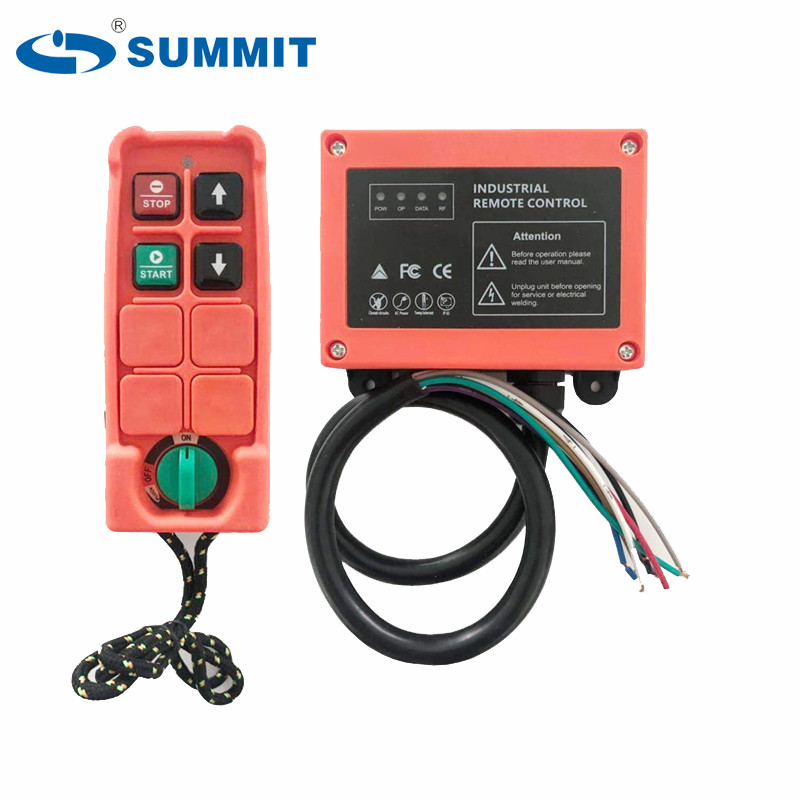

SUMMIT 110V F21-2S(WD) 2 single speed push buttons micro eletric hoist winch wireless remote control switch lifting gate hydraulic pump trailer dump remote control switch



Mini electric wire hoist industrial remote control

Application: particularly for Single-phase electric hoist less than 1T



The remote control F20-2S and F21-2S-WD is portable, easy and cost-effective, and it is designed particularly for the mini micro electric hoist for PA series BADA brand mini electric hoist ,such as PA100, PA200 PA300 PA400 PA500 PA600 PA800 PA1000. It is suitable for DIY market and is also the ideal equipment for hotels,shops, repairing, material handling, industrial assembly lines and large industrial equipment.



Features:

1. ID code remote pairing

2. Safety features

3. 2 Control contacts

4. With battery voltage warning device, the power supply will cut off during low power.

5. Safety key switch is to prevent from the unauthorized user.

6. Program the button function by computer interface.

7. UP/Down can be programmed to interlock or non-interlock.



Technical Parameters:

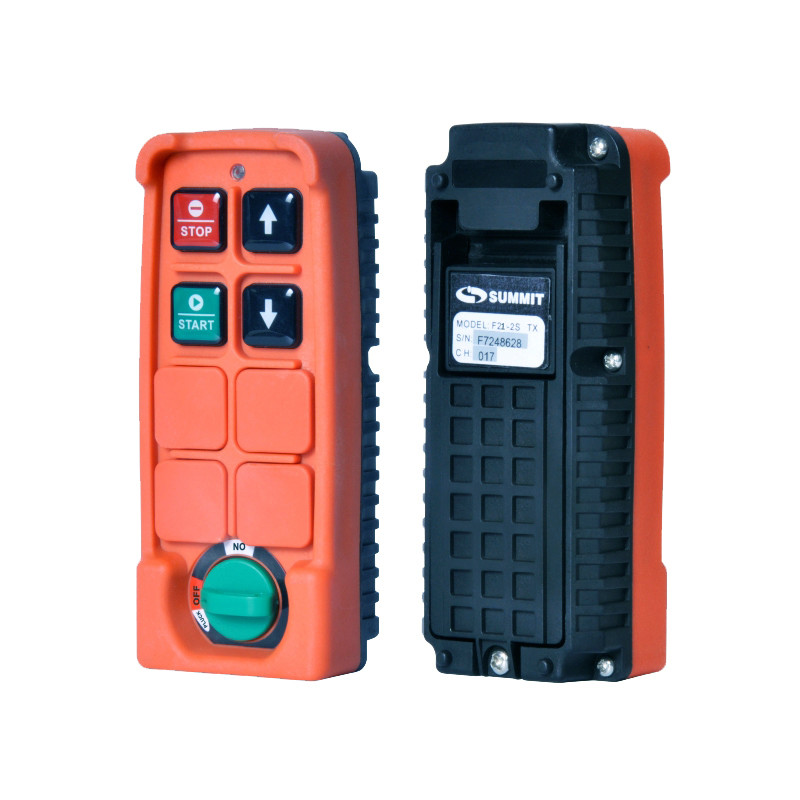

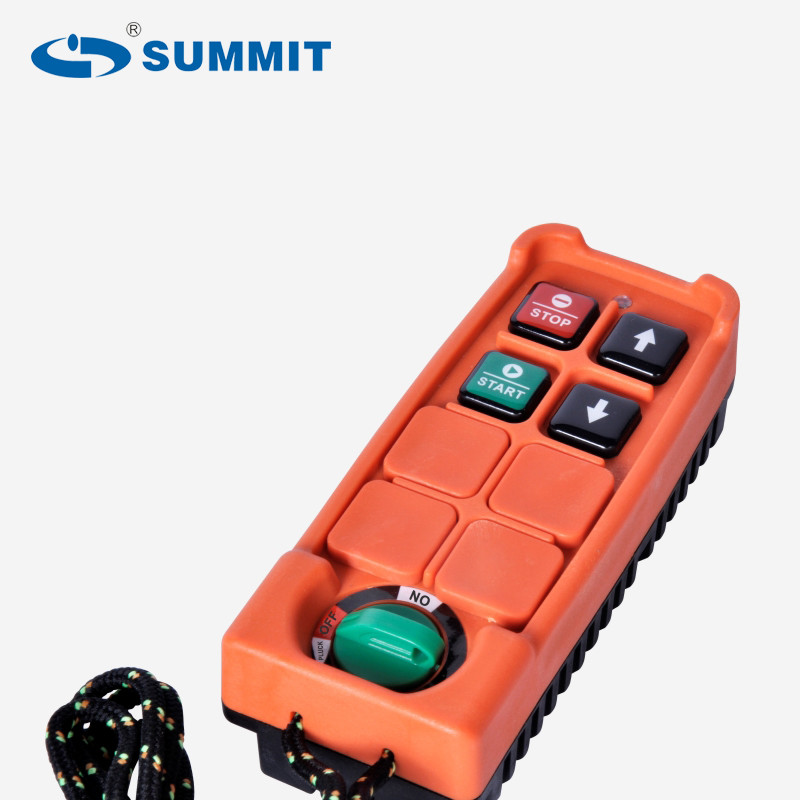

Transmitter parameters:F21-2S-WD TX
Material Glass-Fiber PA
Enclosure protection class IP65
Frequency range UHF:425-446MHz
Receiver sensitivity -110dBm
Transmitter power supply 2 AA alkaline batteries(not included)
Safety Code 32 bits(4.3billion)
Temperature range -30℃~+85℃
Control distance up to 100 meters

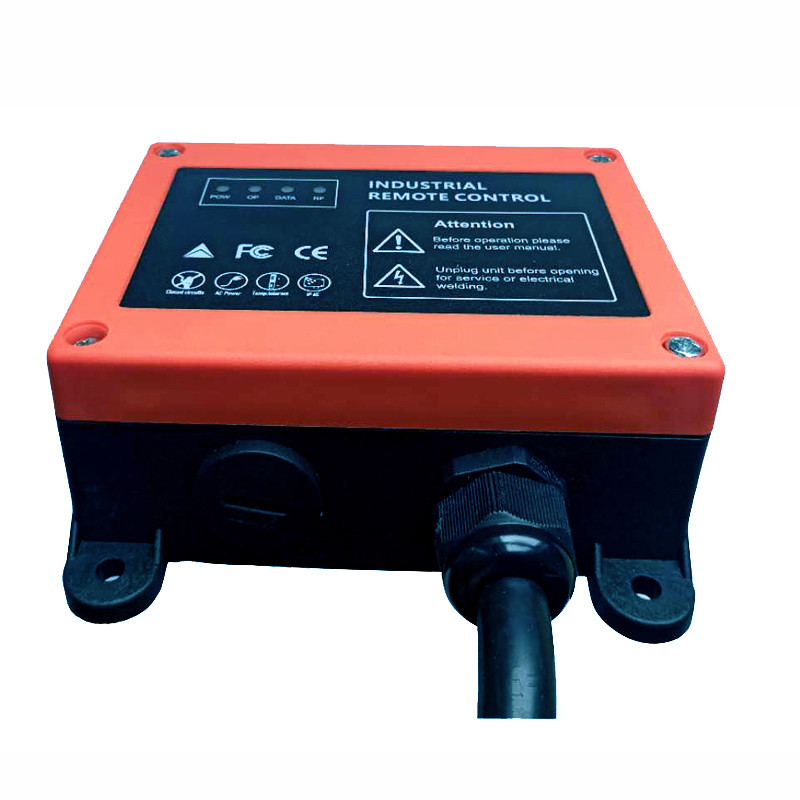

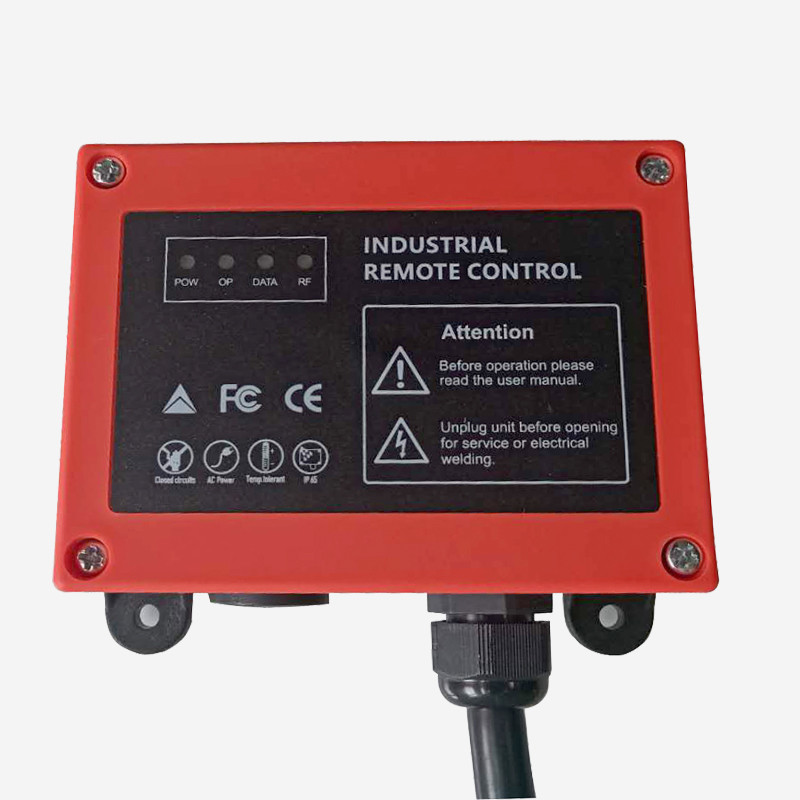

Receiver parameters:F21-2S-WD-RXC
Material Glass-fiber reinforced Nylon
Enclosure protection class IP65
Frequency range UHF:425～446MHz
Transmitter power ≤10dBm
Receiver power supply AC110V
Output contactor capacity 250V/20A
Cable length 0.65m
Safety Code 32 bits(4.3billion)
Temperature range -30℃~+85℃
Control distance 30 to 50 meters
