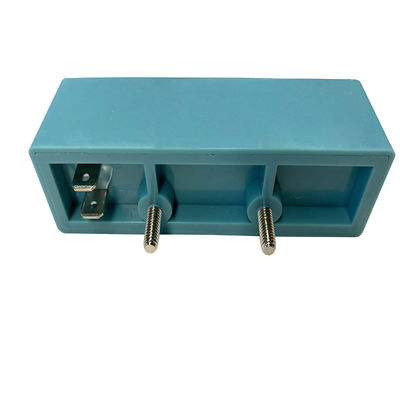

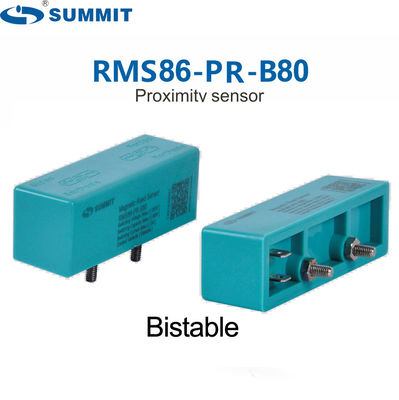

RMS86-PR-B80 Magnetic Reed Proximity Sensor NO Bistable Magnetic Reed Switch Sensor

  • RMS86-PR-B80 Magnetic Reed Proximity Sensor NO Bistable Magnetic Reed Switch Sensor
  • RMS86-PR-B80 Magnetic Reed Proximity Sensor NO Bistable Magnetic Reed Switch Sensor
Place of Origin NINGBO CITY, CHINA
Brand Name SUMMIT
Certification CE
Model Number RMS12-PR-B80
Minimum Order Quantity MOQ:60pcs
Price USD5-15/PC
Packaging Details Box+carton, 60pcs/carton, 8kg/carton, carton size: 38x21.5x32cm
Delivery Time 3-20 working days depending on the quantity
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 5000-1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard IEC/EN 60947-5-2 Sensing Object Magnetic Steel/magnetic Strip
Contact Variants Bistable Enclosure Material Glass Fiber-PA
Switching Voltage Max250VAC Dimension 86X24.5X26mm
High Light

RMS86-PR-B80 Magnetic Reed Proximity Sensor

,

Magnetic Reed Proximity Sensor NO Bistable

,

NO Bistable Magnetic Reed Switch Sensor
Leave a Message
Product Description

SUMMIT RMS86-PR-B80 Rectangular normally close/open NC or NO bistable magnetic reed sensors switch



Description:

Rectangle magnetic sensor RMS12-PR-B80 is one kind of hall effect magnetic sensor switch, and it is professionally used for the elevator&lift floor leveling, and are used to detect the position of the cabin as well as automatic level reset according to the weight. - Position / clearance sensors.and also used for the automation, control and positioning, industrial detection and so on.
Features:

  1. Small size,Cost effective, Durable
  2. Low power consumption allows energy efficiency
  3. Fiber glass reinforced PA housing,dust proof
  4. Electronic proximity switch in cylindrical design with Hall sensor
  5. With external half thread and fastening nuts for simple mounting
  6. Cable length can be customized
  7. Non-contact measuring device, easy installation
  8. Highly more sensitive compared to the traditional magnetic sensor
  9. great anti - interference performance and more reliable and stable
  10. Wide detection range from 4-15mm
  11. Widely used for elevator leveling, and it is also applied to vehicle industry measuring and position , the displacement detection in automation industry
Mode: RMS86-PR-B80
Standard IEC/EN 60947-5-2 Switching frequency <500Hz
Enclosure material Glass fiber-PA Switching time”closing) 0.2ms
Operating principle Magnetic Switching time”opening” 3.5ms
Contact variant bistable Bounce time 0.5ms
Switching voltage Max250VAC Ambient temperature -25℃~+85℃
Switching current Max 1.3A Mechanical life Min 108 operations
Switching capacity Max 80VA/W Electrical life 1million-1billion times
Dielectric strength 800V Repeatability 0.25mm
Switching speed Max 3.5ms Protection class IP67-EN60529
Switching frequency <500Hz Dimension 86X24.5X26mm



Instruction:

SUMMIT High Reliability, Inherent in Stringent Quality Control
brings several decades of expertise in Inductive, Magnetic and Photoelectric Sensors, Phase Monitoring Relays, Electromechanical Relays, Limit Switches and infrared light curtain— enabling us to match different requirements and provide fully customized solutions.
We provide the comprehensive range of magnetic reed sensors RMS12 series, and enabling us to match different requirements and provide fully customized magnetic sensors and solutions.
